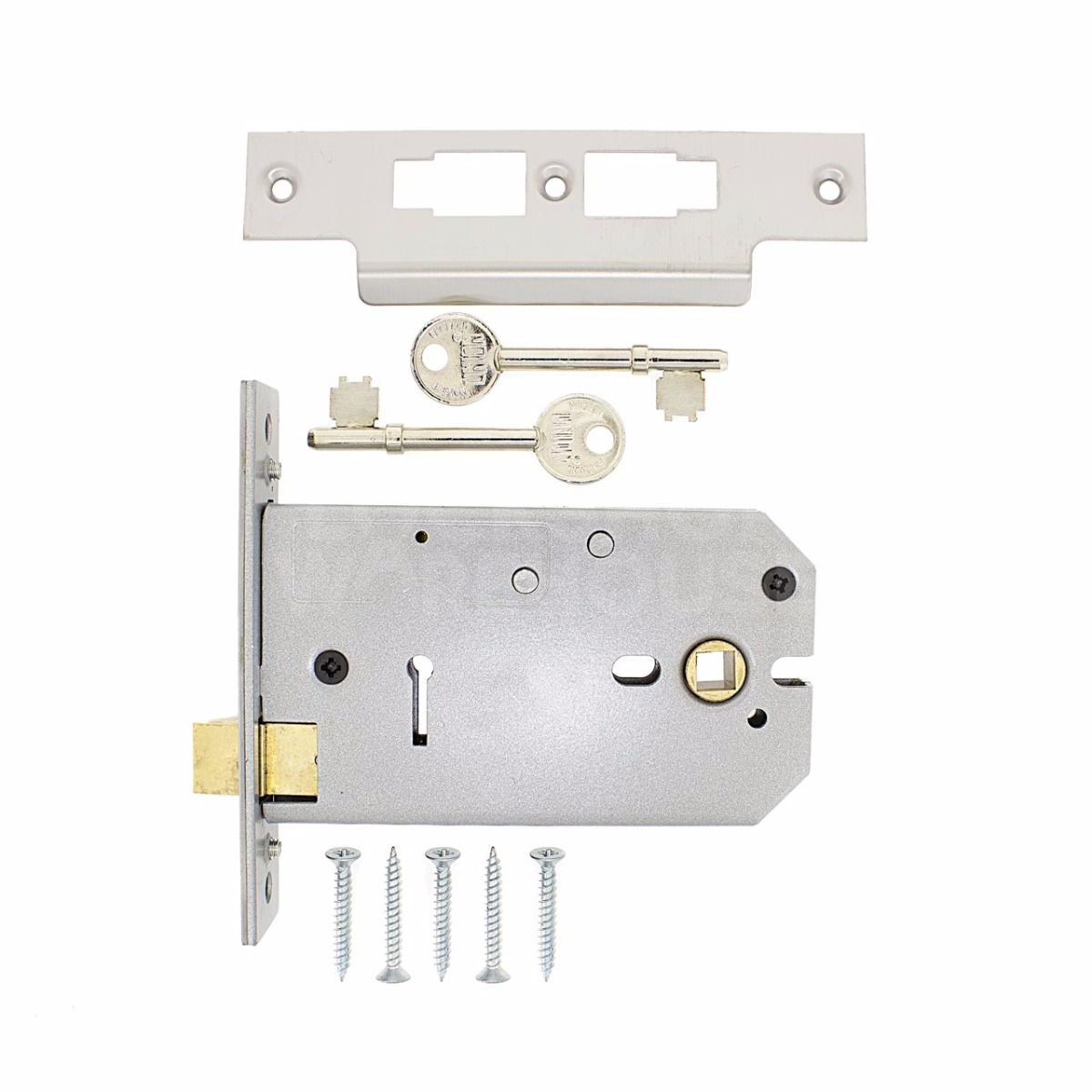

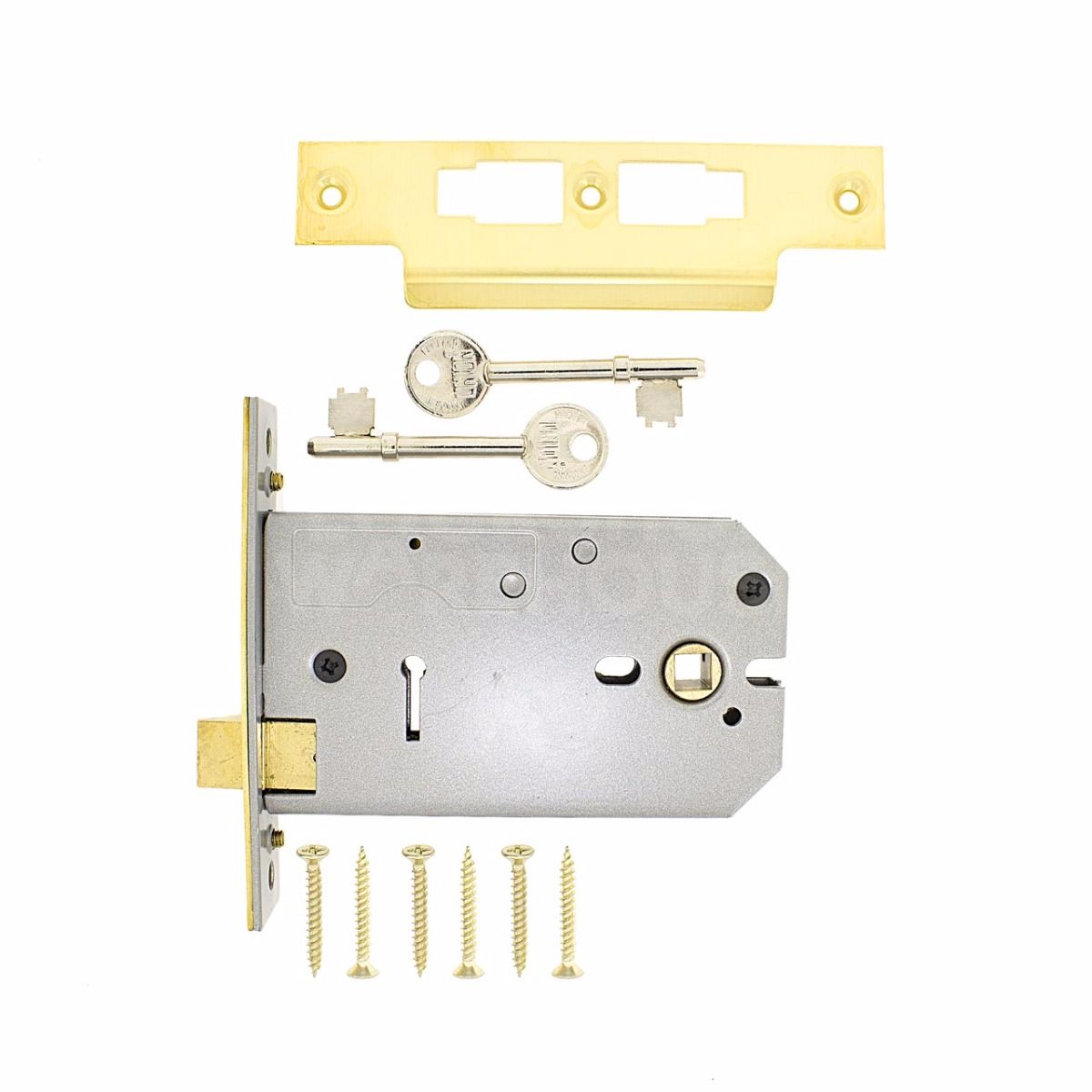

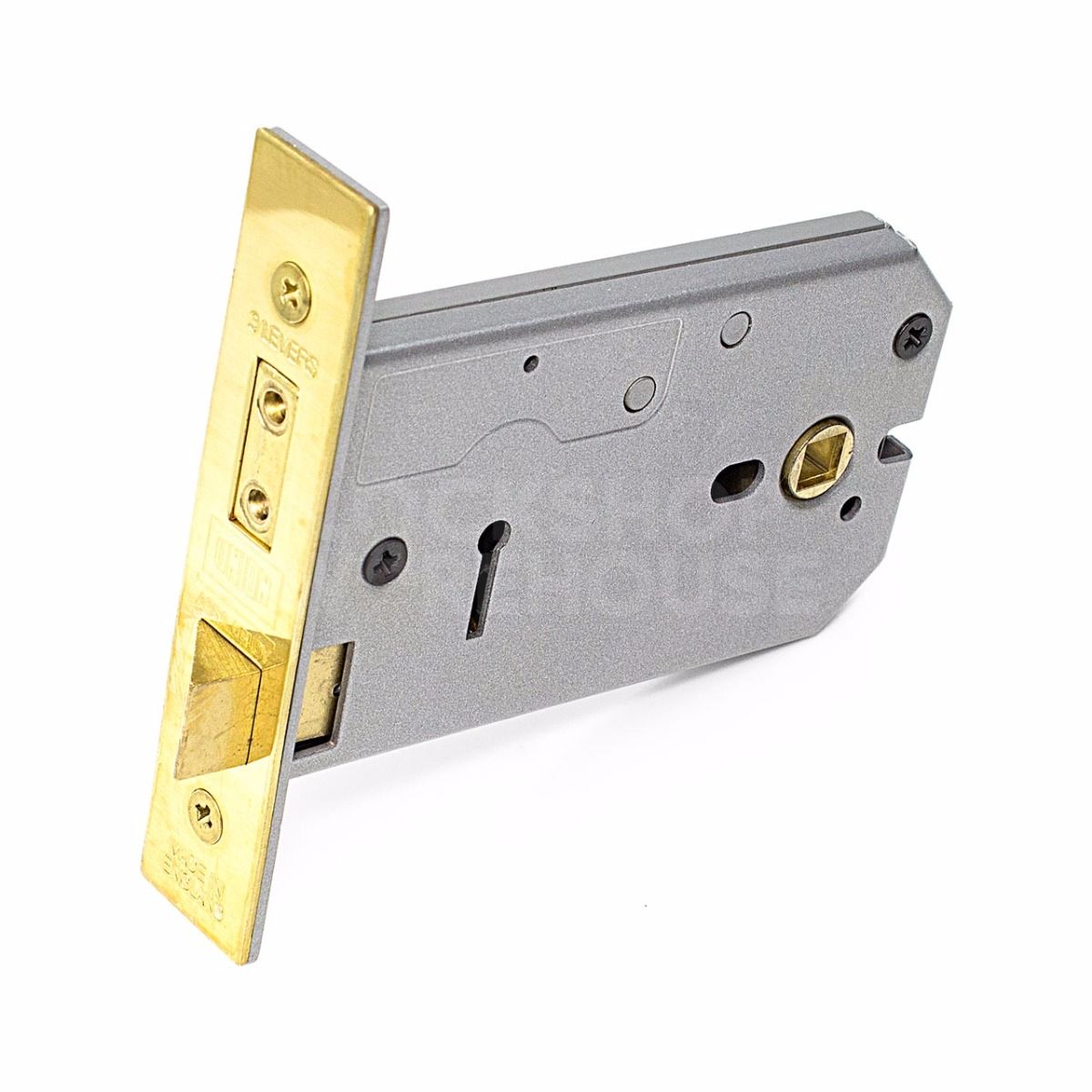

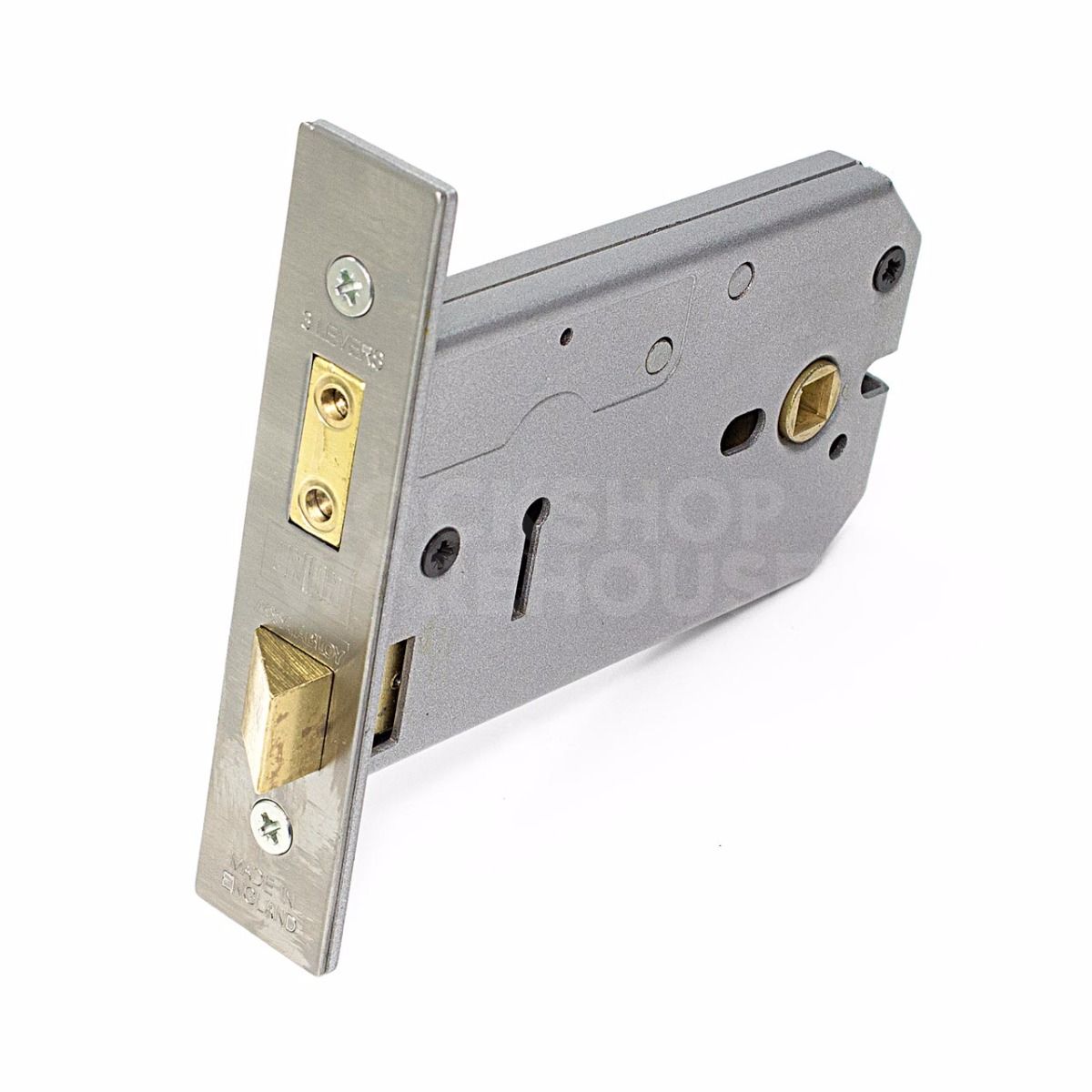

Union 2077 Sashlock Horizontal

£47.99

(£39.99 ex VAT)

Deadbolt is locked or unlocked by key from either side. Reversible latchbolt withdrawn by knob from either side.

Pierced to accept bolt through furniture.

Mechanism : 3 Lever
Case Sizes : 127mm (5") & 152mm (6")
Follower : 8mm (Two Way Action)
Case Finish : Enamelled Silver
Forend Finish : Brass or Satin Chrome
Keys Supplied : 2
Handing - Reversible

Please measure existing lockcase carefully to assess if you have the 127mm or 152mm size. Important to measure before ordering to ensure the positions of the key hole and spindle follower.

Document Icon product info

Union 3 Lever Range of mortice locks which can be keyed alike together

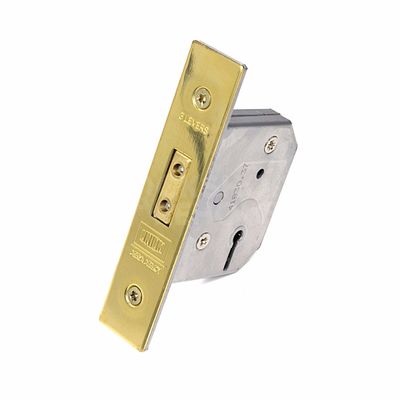

Union 2177 3 Lever Deadlock £ 20.39
Union 2277 Sashlock £ 23.99
Union 2077 Sashlock Horizontal £ 41.99
Union 2477 3 Lever Sliding Door Lock £ 41.99

Finish

Overall Case Size

Key Configuration

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
star Recommended
4/10 Security Rating
key-pinned Key Profile: Standard

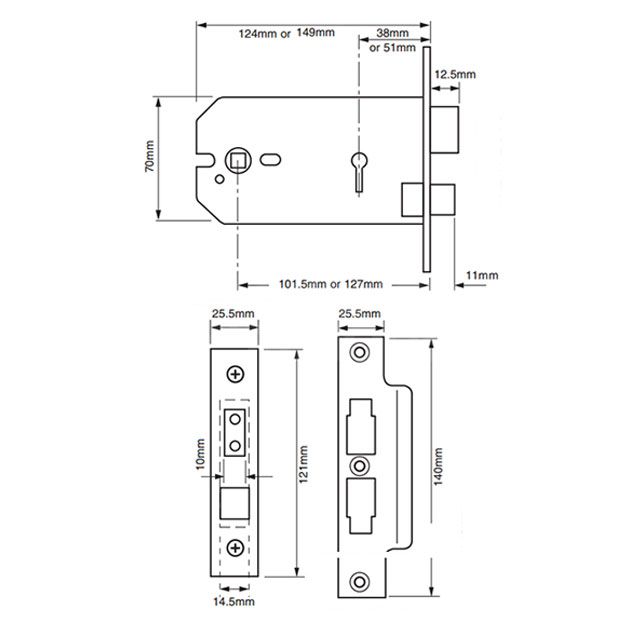

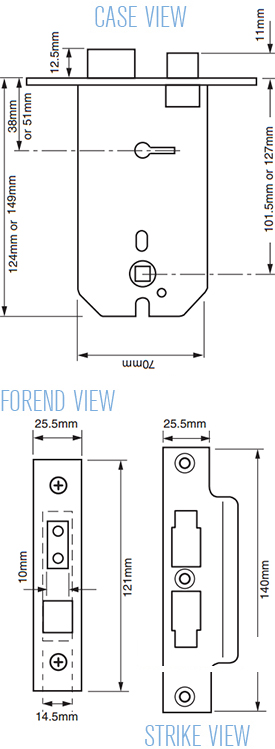

Dimensions Image: Union 2077 Sashlock Horizontal
Part Min (mm) Max (mm)
follower 101.5 127
Backset 38 51
Bolt Length 12.5 -
Case Width 124 149
Case Height 70 -
Forend Width 25.5 -
Forend Length 121 -
Strike Plate Width 25.5 -
Strike Plate Length 140 -
Dimensions Image: Union 2077 Sashlock Horizontal

Brand

Union

SKU

201

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard
