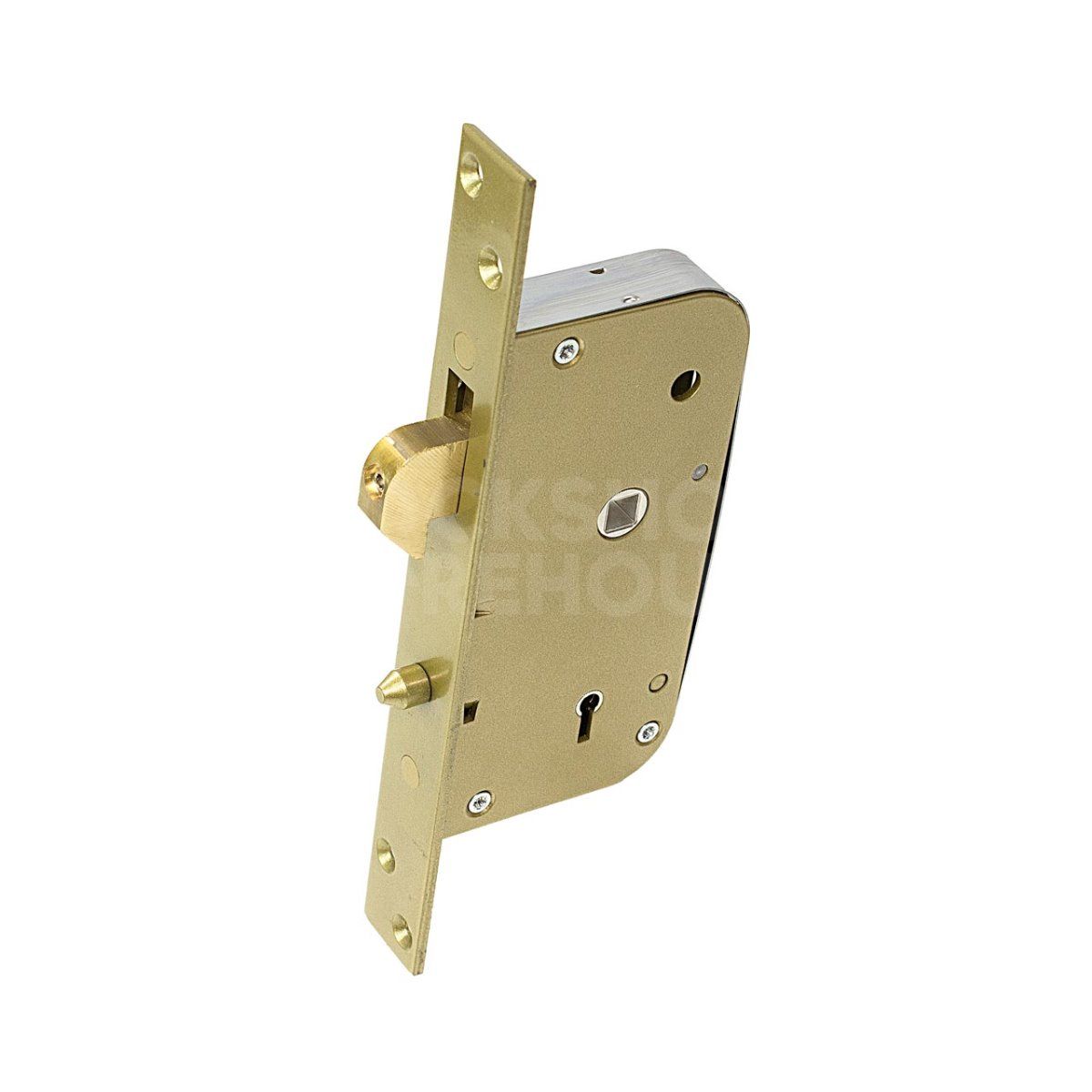

Gallery Image: Union 3M51 70mm Clutch Bolt
Gallery Image: Union 3M51 70mm Clutch Bolt

Union 3M51 70mm Clutch Bolt

£203.99

(£169.99 ex VAT)

This 5 detainer mortice lock is suitable for sliding doors requiring automatic closing action. Handles can be fitted to one or both sides and the key can be used on either side to secure both bolt and handle(s).

A projecting stump on the forend engages into the locking plate to prevent the door being lifted from the frame in the closed position. Bolt-through fixing is also provided.
Supplied with gold texured faceplate.

Key Configuration

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
star Recommended
heavy-duty Heavy Duty
8/10 Security Rating
key-pinned Key Profile: Standard

Dimensions

Toggle Icon

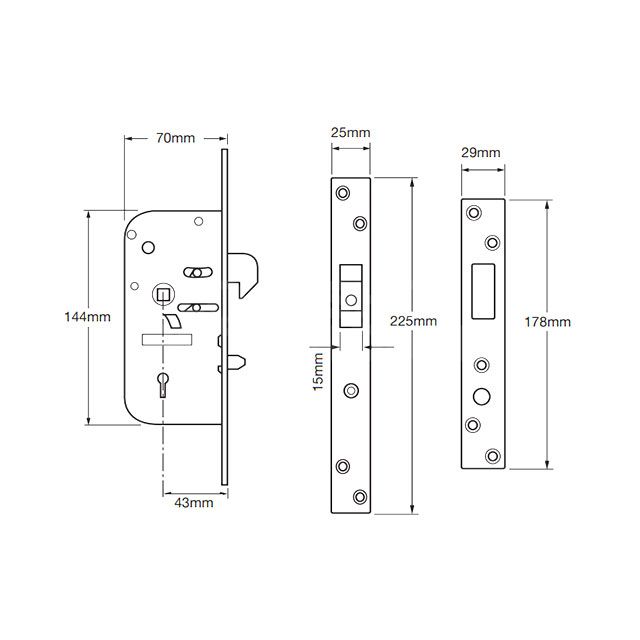

Dimensions Image: Union 3M51 70mm Clutch Bolt
Part Min (mm) Max (mm)
centres 56 -
Backset 43 -
Case Width 70 -
Case Height 144 -
Forend Width 25 -
Forend Length 225 -
Strike Plate Width 29 -
Strike Plate Length 178 -

Technical Specifications

Toggle Icon
Dimensions Image: Union 3M51 70mm Clutch Bolt

Brand

Union

SKU

U3M51

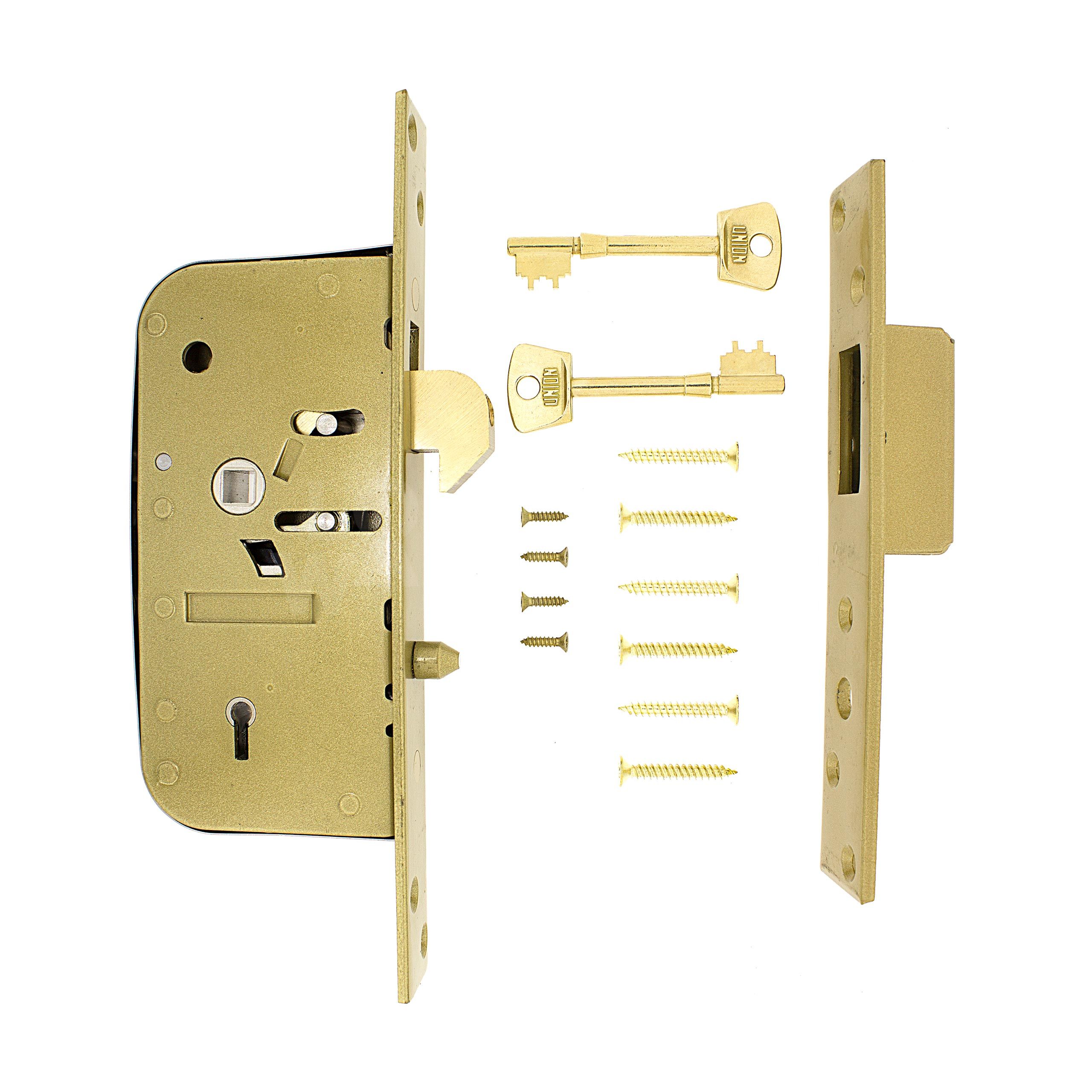

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard
