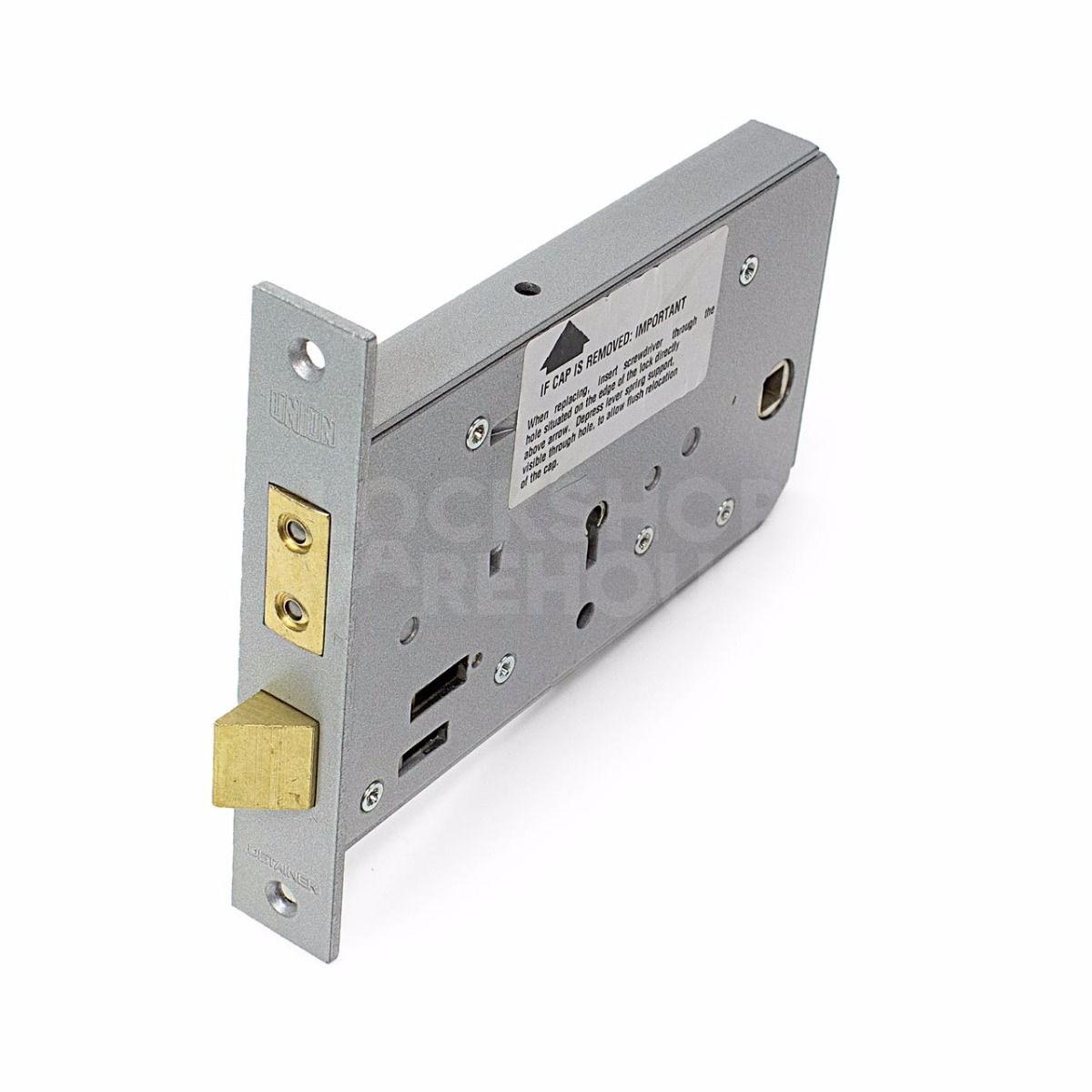

Union 3J60 Horizontal Sashlock

£207.59

(£172.99 ex VAT)

This Union sashlock has a long horizontal body, twice the depth of the average sashlock, therefore it is suited to environments where you want the handles to be inset further from the side of the door. This lock is also manufactured with a reversible latchbolt withdrawn by the knob from either side.

This lock is not kitemarked but does have 5 detainers (levers). Supplied without a faceplate only available in Silver finish.

Mechanism: 5 detainer
Security Level: High
Case Size: 165mm
Case Finish : Silver
Forend Finish: Silver
Keys Supplied: 2
Handing: Reversible
Differs: 25,000

Document Icon product info

Union C Series Range of Non BS3621 mortice locks which can be keyed alike together.

Union 3G110 Deadlock - 73mm £ 107.99
Union 3K70 Sashlock £ 131.99
Union 3J60 Horizontal Sashlock £ 207.59
Union 3R35 Deadlocking Latch £ 167.99
Union 3M51 70mm Clutch Bolt £ 203.99
Union 3M50 70mm Hook Bolt £ 215.99

Key Configuration

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
star Recommended
8/10 Security Rating
key-pinned Key Profile: Standard

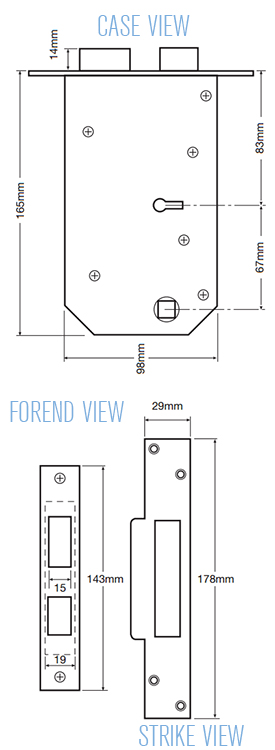

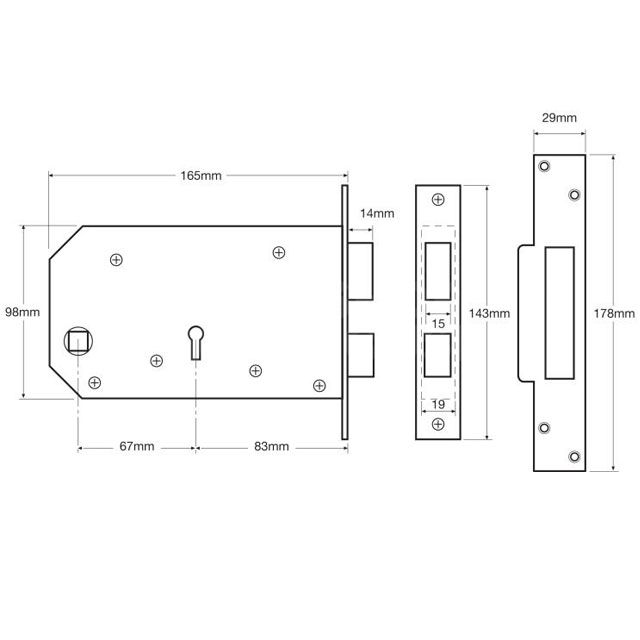

Dimensions Image: Union 3J60 Horizontal Sashlock
Part Size (mm)
follower 150
Backset 83
Bolt Length 14
Case Width 165
Case Height 98
Forend Width 25
Forend Length 143
Strike Plate Width 29
Strike Plate Length 178
Dimensions Image: Union 3J60 Horizontal Sashlock

Brand

Union

SKU

CH3J60

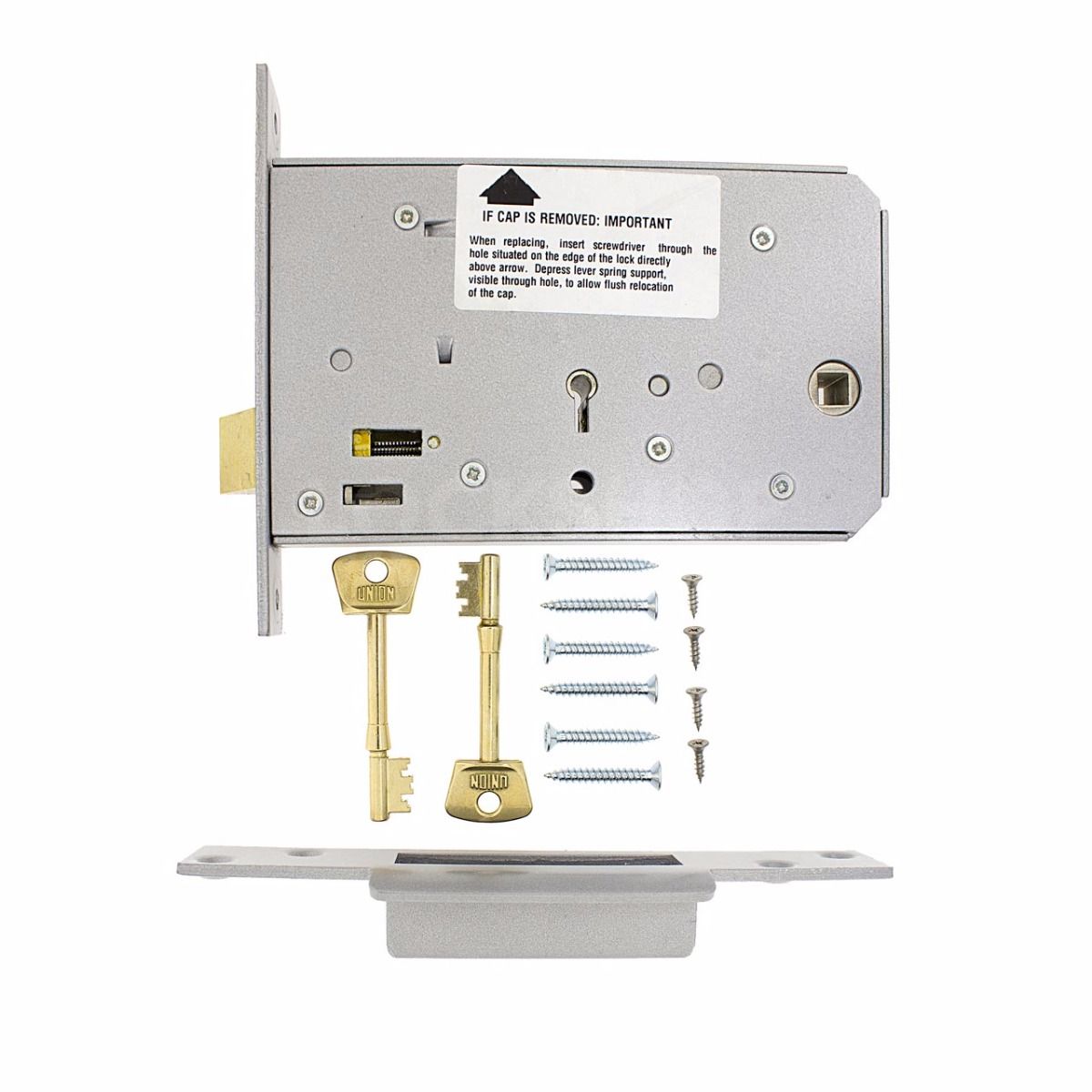

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard
