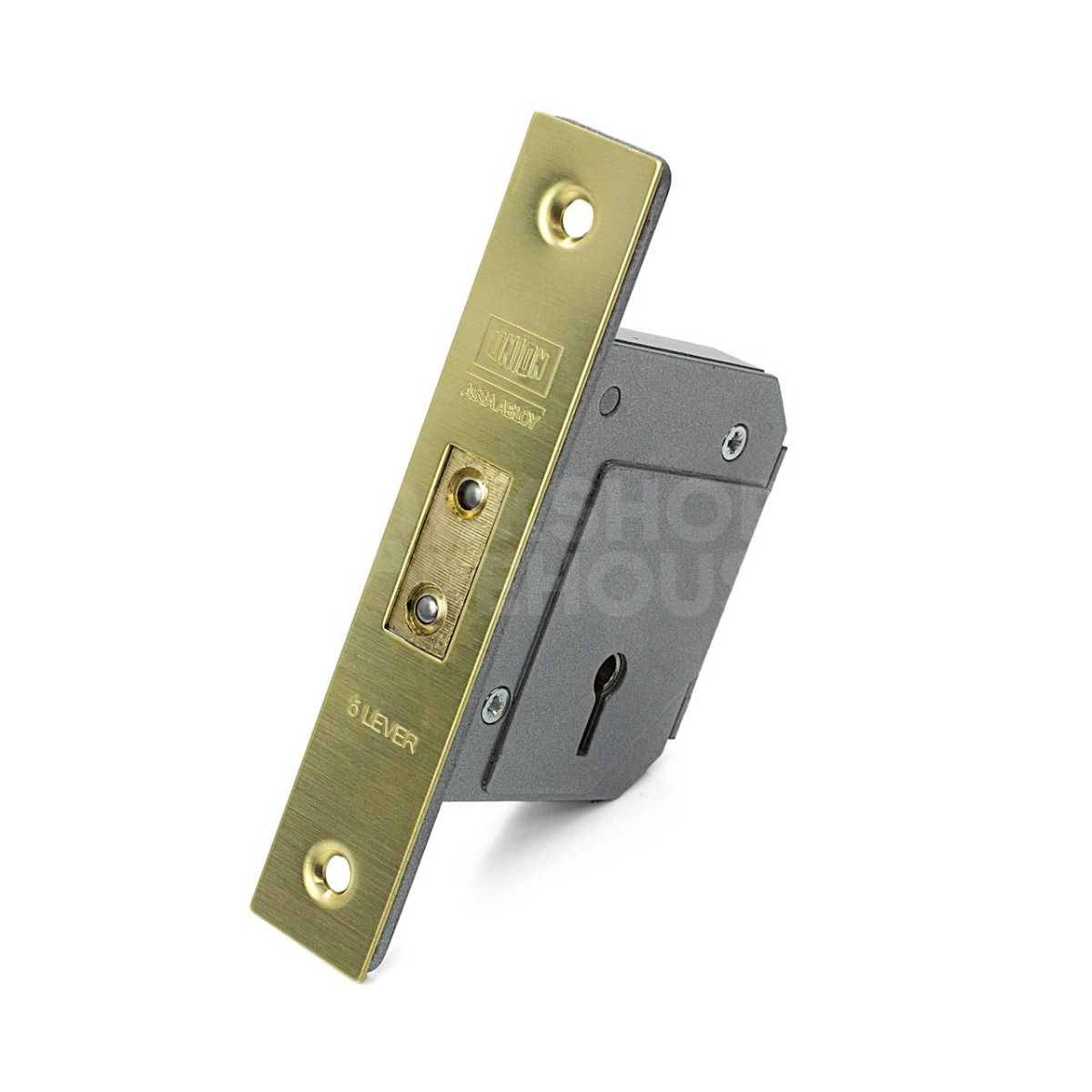

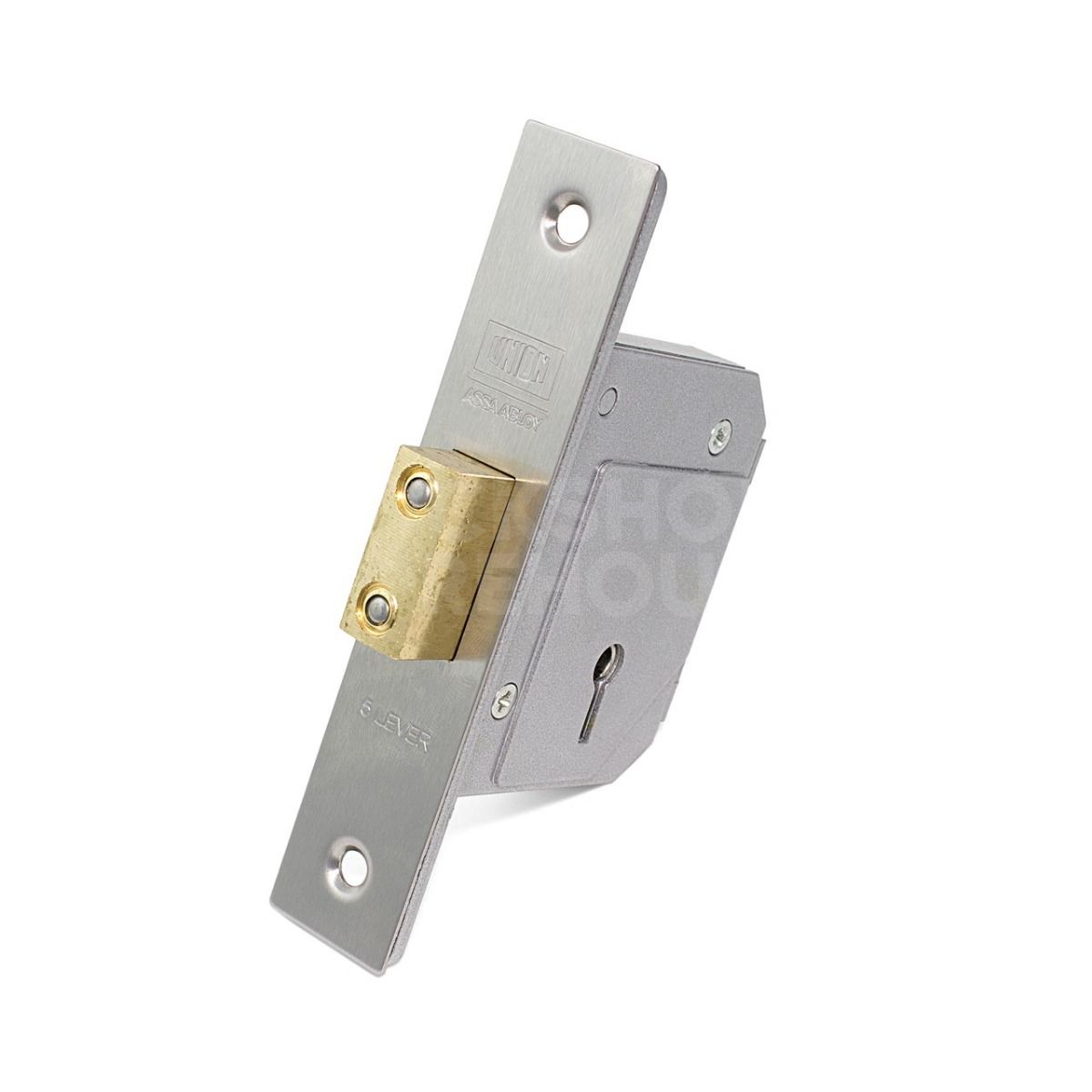

Gallery Image: polished brass Gallery Image: satin chrome Gallery Video: Union 3G114 Mortice Deadlock (Old Style) Gallery Video: Union 3G114 Mortice Deadlock (Old Style) Gallery Image: Union 3G114 Mortice Deadlock (Old Style) Gallery Image: Union 3G114 Mortice Deadlock (Old Style)

Union 3G114 Mortice Deadlock (Old Style)

£59.99

(£49.99 ex VAT)

This is the older style of 3G114 mortice deadlock. It still offers excellent protection against common forms of attack but it does not conform to current British Standards due to it having a 14mm deadbolt (current standards require at least 20mm). We really only recommend this lock when used as a direct replacement.

For the latest version of this product see the Union 3G114E Deadlock

Mechanism : 5 Lever
Case Size : 67mm or 80mm
Case Finish : Silver
Forend Finish : Polished Brass or Satin Chrome
Differs : 1000 +

Document Icon product info

Key Configuration

Finish

Size

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
7/10 Security Rating
10 Year Guarantee
tick Anti Drill, Snap, Pick and Bump
fire Fire Rated: FD60
key-pinned Key Profile: Standard

How to swap out a 3G114 (old style) for a 3G114E (new style)

As a straight swap replacement and British Standard design, the 3G114E is a great upgrade to consider when purchasing a new mortice lock. The below video shows how simple it is to swap the older 3G114 to the new design.

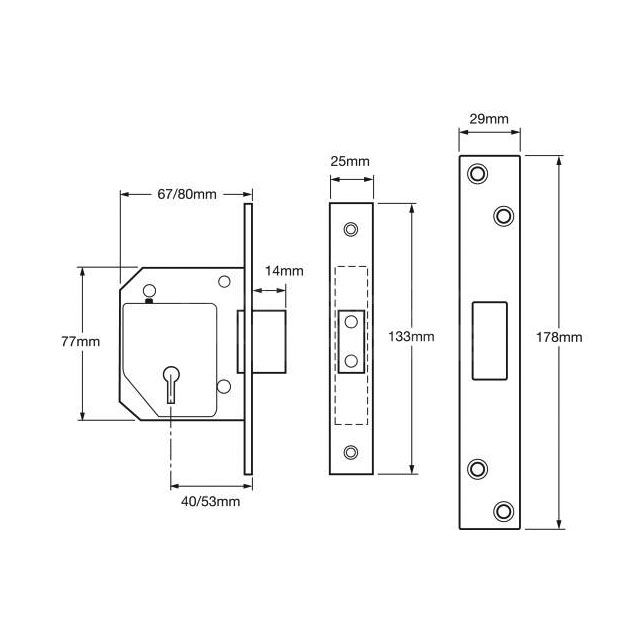

Dimensions Image: Union 3G114 Mortice Deadlock (Old Style)
Part Min (mm) Max (mm)
Bolt Length 14 -
Case Height 77 -
Forend Width 25 -
Forend Length 133 -
Strike Plate Width 29 -
Strike Plate Length 178 -
Backset 40 53
Case Width 67 80
Dimensions Image: Union 3G114 Mortice Deadlock (Old Style)

Brand

Union

SKU

3G114

Box Contents

fixing screws

2 keys

strike plate

mortice lock

key escutcheons

Certifications

tick Anti Drill, Snap, Pick and Bump

Fire Rating

Fire Rated: FD60

Key Profile

Key Profile: Standard
