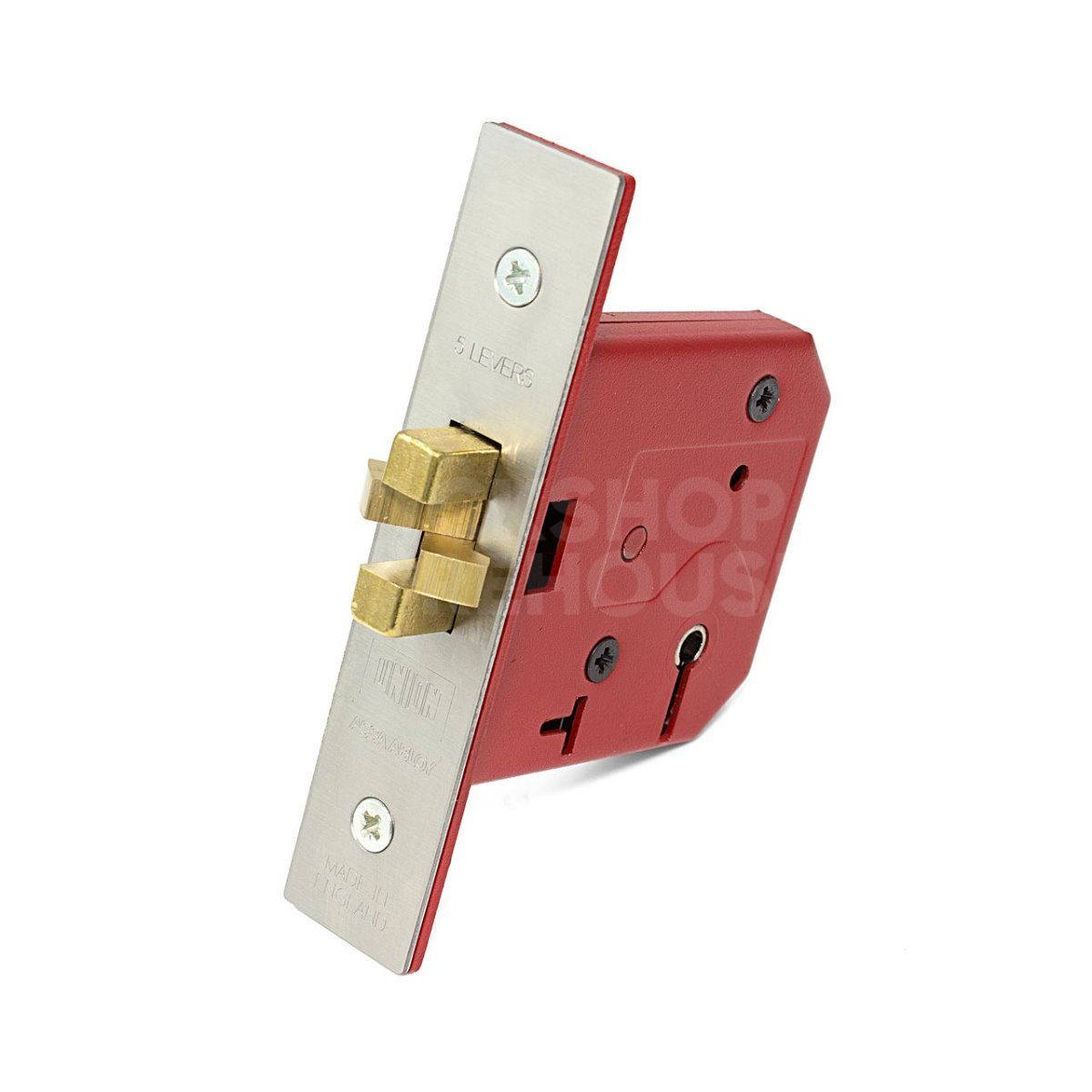

Union 2401 5 Lever Sliding Door Lock

£71.99

(£59.99 ex VAT)

Designed to operate wooden doors hinged on the left or right and requiring key operation only.

The claw deadbolt is locked or unlocked by a key from either side. Can be supplied keyed alike with J-2101 and J-2201

Finish: Satin Chrome
Case Size: 78mm (3")
Case Material and Finish: Steel, Red Enamelled.
Forend: Stainless Steel, finished to match strike plate.
Striking Plate: Stainless Steel, finished to match forend.
Deadbolt: Deadbolt - Brass, expanding claw

Keyblank reference KB430.

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
8/10 Security Rating
key-pinned Key Profile: Standard

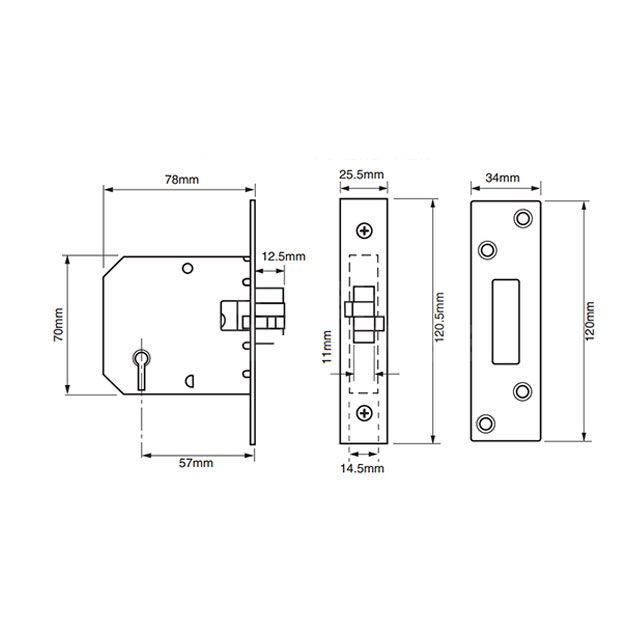

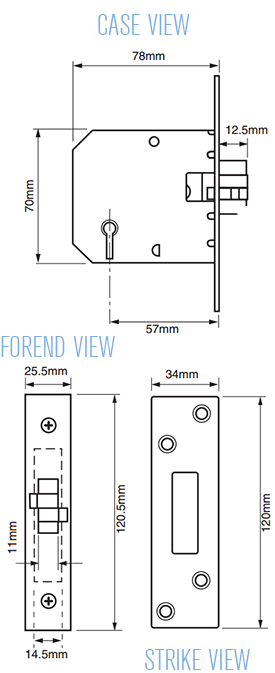

Dimensions

Toggle Icon
Dimensions Image: Union 2401 5 Lever Sliding Door Lock
Part Size (mm)
Backset 57
Bolt Length 12
Case Width 78
Case Height 70
Forend Width 25.5
Forend Length 120.5
Strike Plate Width 34
Strike Plate Length 120

Technical Specifications

Toggle Icon
Dimensions Image: Union 2401 5 Lever Sliding Door Lock

Brand

Union

SKU

U2401

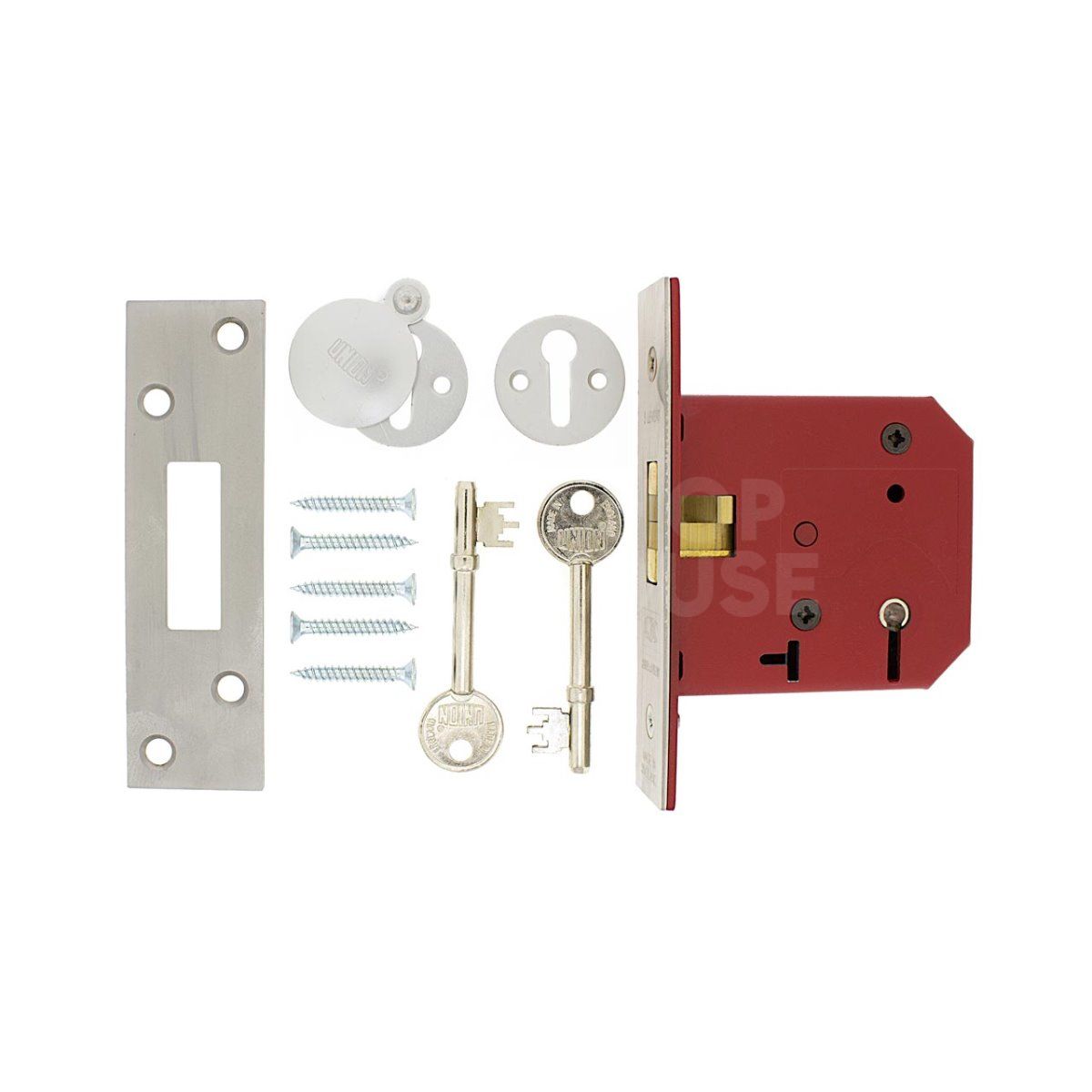

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

key escutcheons

Key Profile

Key Profile: Standard
