skip to Union 2277 Sashlock
Gallery Image: Union 2277 Sashlock Gallery Image: Union 2277 Sashlock Gallery Image: Union 2277 Sashlock Gallery Image: Union 2277 Sashlock Gallery Video: Union 2277 Sashlock Gallery Video: Union 2277 Sashlock

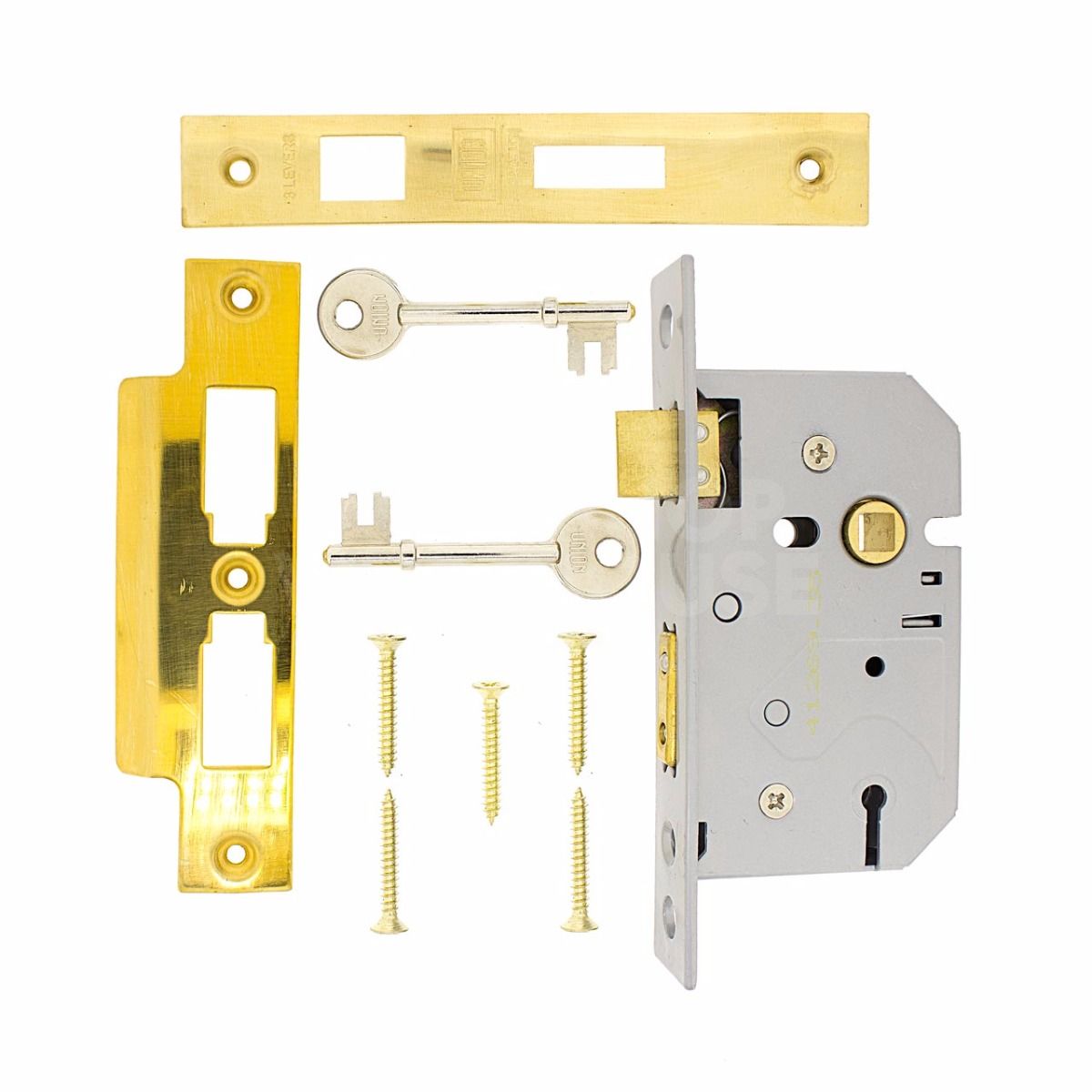

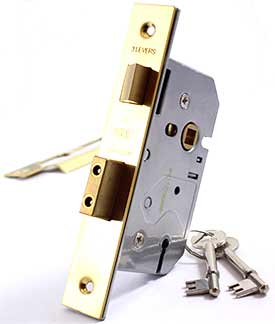

Union 2277 Sashlock

£23.99

(£19.99 ex VAT)

3 Lever Internal sashlock:

Application: Wooden doors hinged on the left or right and requiring key and lever handle operation. Operation: Deadbolt locked or unlocked by key from either side. Latchbolt withdrawn by lever handle from either side. Pierced to accept bolt through furniture.

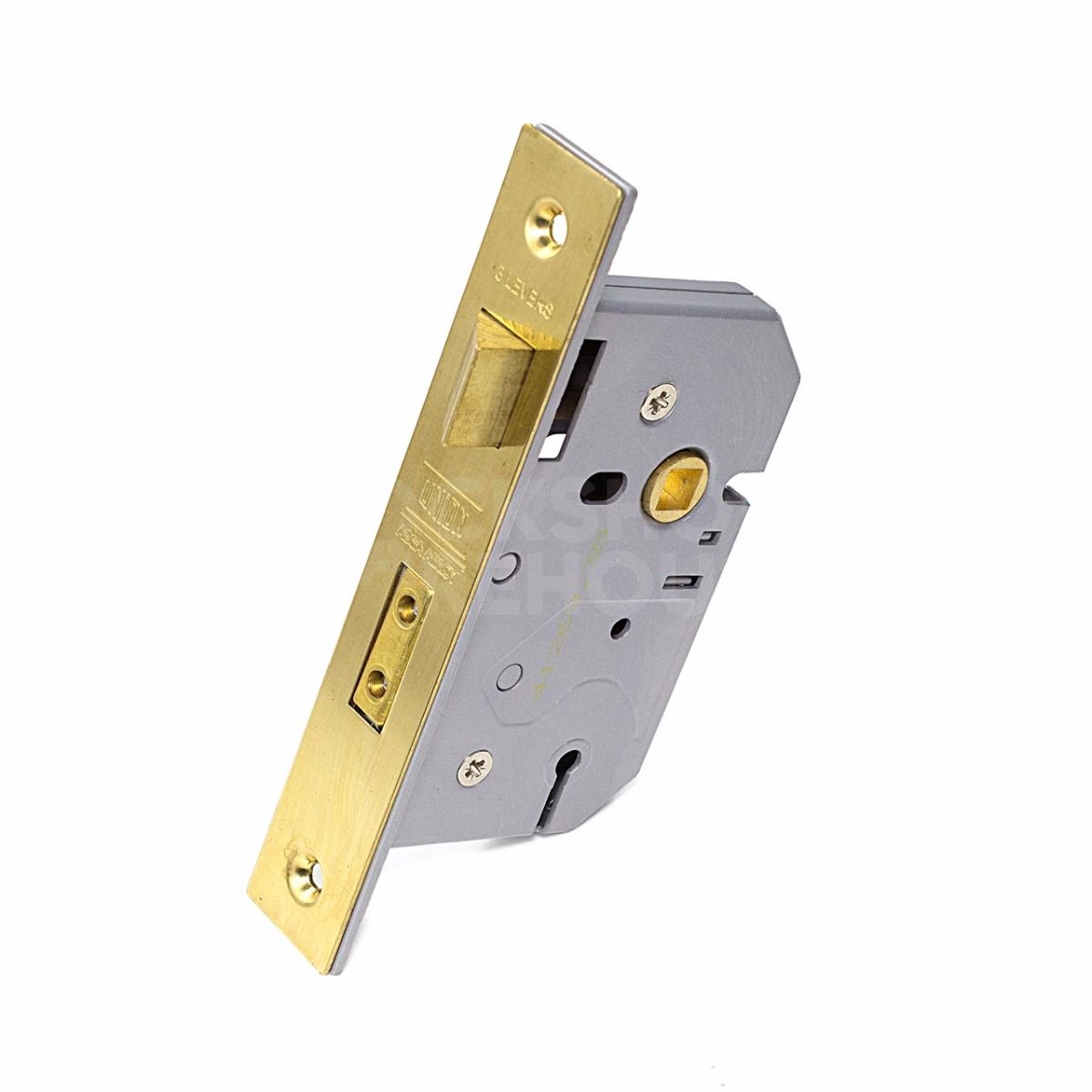

Finish: Finish shown in Polished Brass .

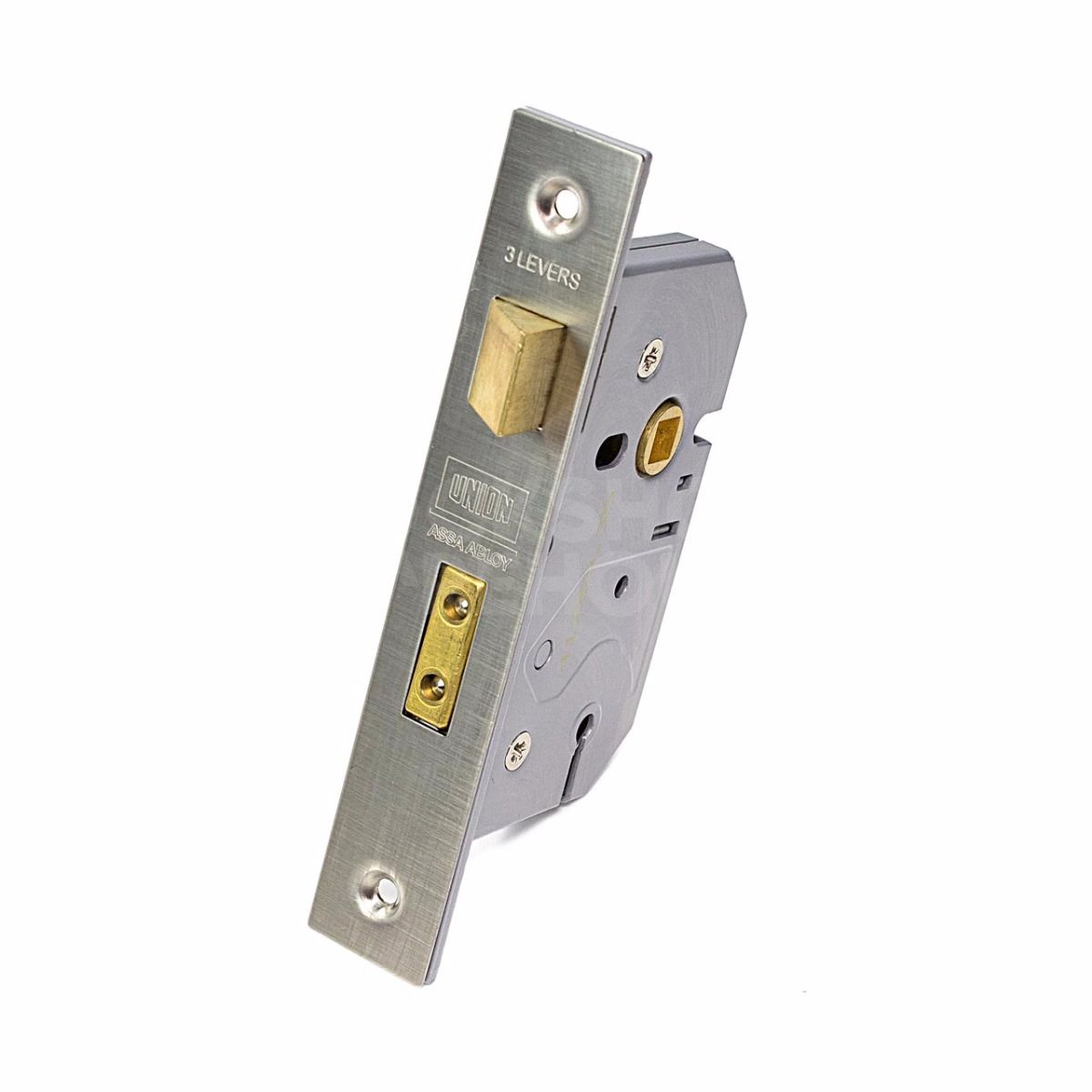

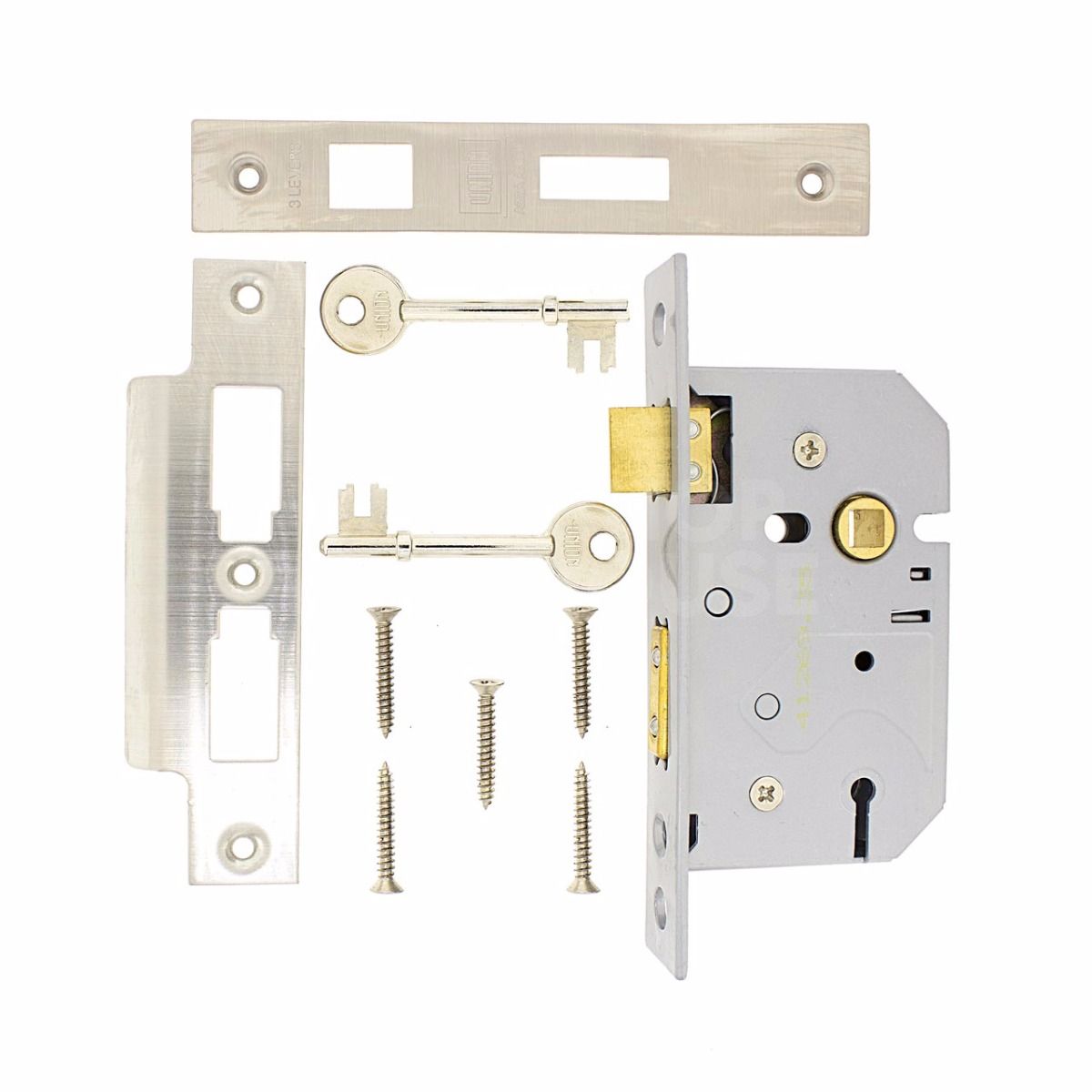

Also available in Satin Chrome.
Case Material and Finish: Steel,
Silver Enamelled.
Forend: Stainless Steel, finished to match strike plate.
Striking Plate: Stainless Steel, finished to match forend.
Latchbolt/Deadbolt: Deadbolt - Brass, hardened steel rollers. Latchbolt - Brass.
Follower: Brass, 8mm square.

Spare cut keys reference MM (numbers range 101-200).

Union 3 Lever Range of mortice locks which can be keyed alike together

Union 2177 3 Lever Deadlock £ 20.39
Union 2277 Sashlock £ 23.99
Union 2077 Sashlock Horizontal £ 41.99
Union 2477 3 Lever Sliding Door Lock £ 41.99

Key Configuration

Finish

Size

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
star Recommended
4/10 Security Rating
key-pinned Key Profile: Standard

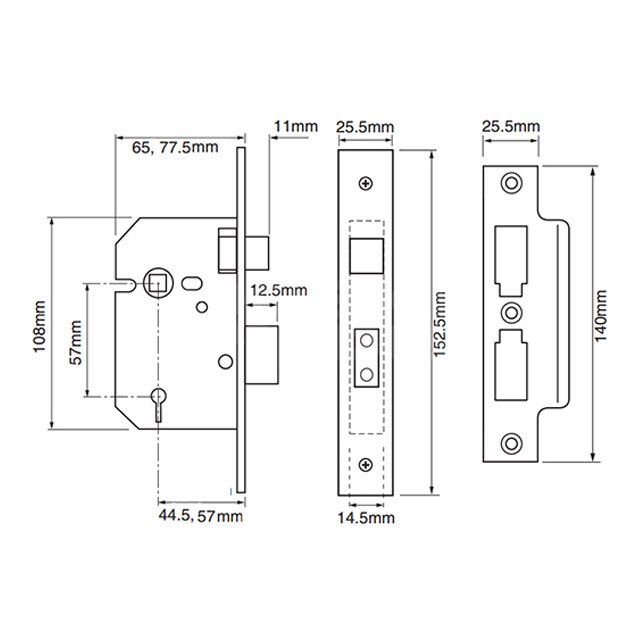

Dimensions Image: Union 2277 Sashlock
Part Min (mm) Max (mm)
centres 57 -
Backset 44.5 57
Bolt Length 12.5 -
Case Width 65 77.5
Case Height 108 -
Forend Width 25.5 -
Forend Length 152.5 -
Strike Plate Width 25.5 -
Strike Plate Length 140 -

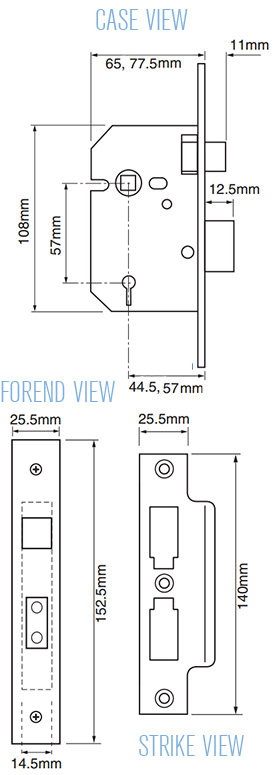

Dimensions Image: Union 2277 Sashlock

Brand

Union

SKU

U2277

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

Key Profile

Key Profile: Standard

Related Products

skip to Additional Standard Key for Supplied 2277

Additional Standard Key for Supplied 2277

£3.60

(£3.00 ex VAT)

Additional Standard Key for Supplied 2277

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
skip to Extra Long Key for Union 3 lever locks (extra 30MM)

Extra Long Key for Union 3 lever locks (extra 30MM)

£5.40

(£4.50 ex VAT)

Extra long key for Union 3 lever locks with 30mm added length when compared with the standard length keys. Length of key is 90mm from the middle of the flag ( cut part) to the end of the bow ( part you hold) We use copy key blanks not genuine key blanks to reduce the cost of the key cutting. All key blanks that we use are the top quality keys from the biggest key blank manufacturers. PLease contact us if you would like more info. !!<

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

>

!!

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
skip to Suitable Size Chisels to fit Mortice Locks

Suitable Size Chisels to fit Mortice Locks

£17.99

(£14.99 ex VAT)

This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Kit includes:

1 x Faithful 19mm Chisel

1 x Faithful 25mm Chisel

The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow.

Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners.

All the chisels in this range are supplied with blade guards.

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

SKU

MortChis

Box Contents

19mm Chisel

25mm Chisel

Blade Guards

skip to Suitable Size Drill Bits to fit Mortice Locks

Suitable Size Drill Bits to fit Mortice Locks

£11.99

(£9.99 ex VAT)

This Mortice Drill Bit Kit will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

SKU

MortTool

Box Contents

1 x Black and Decker 18mm Flat wood bit (for main mortice hole)

1 x Black and Decker 10mm Flat wood bit (for Key Holes)

2 x Black and Decker 2.5mm drill (for pilot holes)

skip to Union 2979 Sash lock Rebate

Union 2979 Sash lock Rebate

£40.79

(£33.99 ex VAT)

This rebate is reversible in design, enabling it to be fitted to either french door. A range of sizes allow you to choose the best fit for your requirements and the rebate comes in a couple of finishes to better match your lock.

Rebate sets are only needed for double rebated doors, these are not the plates you require if you have a single door these are included with every mortice lock.

Size & Finish

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
