Max door weight : 50kg,
Applications : Concealed,
Finish : Polished Brass ,
Fire tested : Yes ,
Incorporated in doors that were tested to BS476 Part 22 1987,
does not affect latched 1 /2 hour and 1 hour fire door integrity,

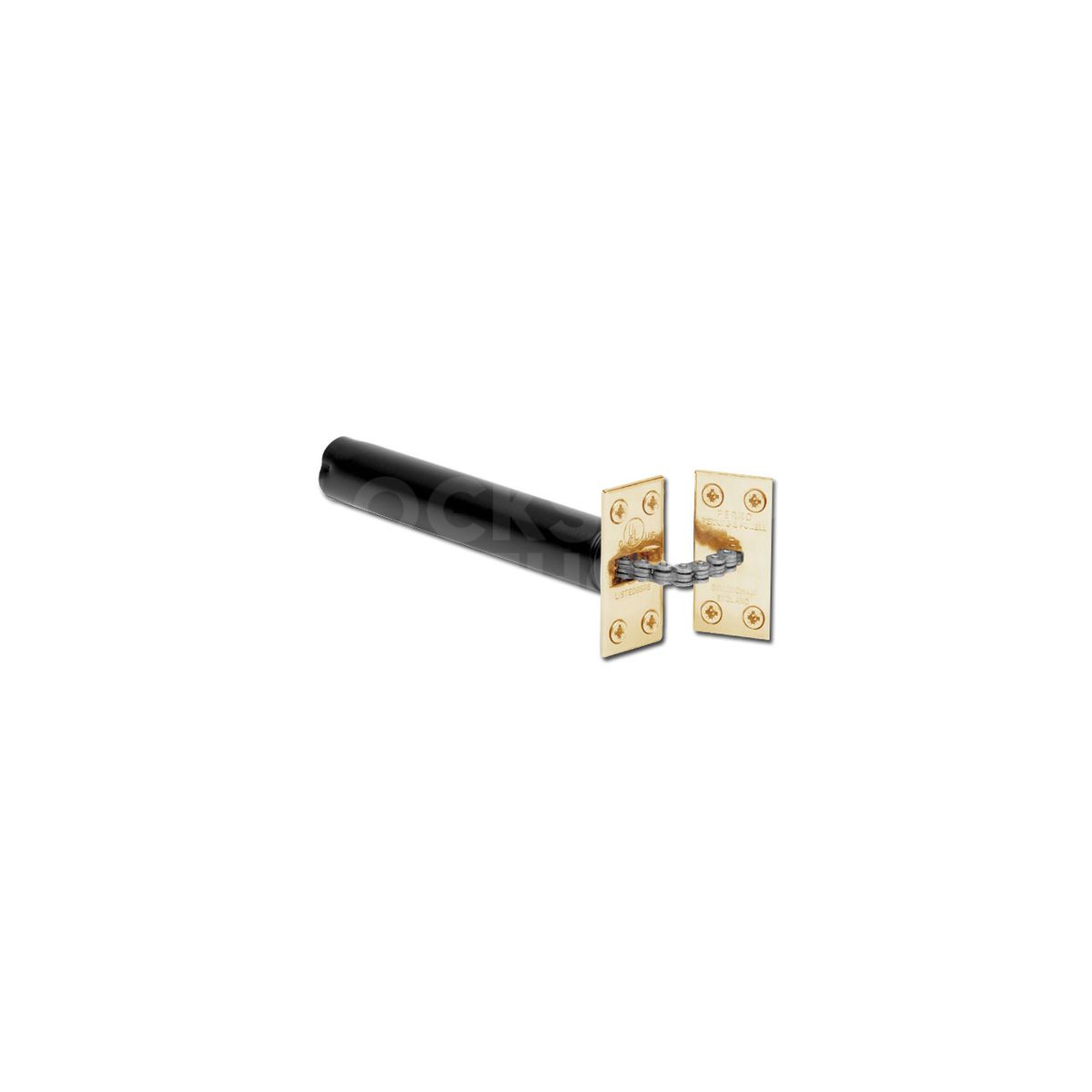

Concealed in the door
The only parts visible are the anchor plate and chain Tested to withstand 500,000 open and closing cycles For use on vertical doors
Tube length 142mm, Tube diameter 22mm, Plate Height 51mm, Plate width 25mm.
