skip to GU - 4 Rollers: UPVC Multi-Point Locking Mechanism 45mm Backset
Gallery Image: GU - 4 Rollers: UPVC Multi-Point Locking Mechanism 45mm Backset Gallery Image: GU - 4 Rollers: UPVC Multi-Point Locking Mechanism 45mm Backset

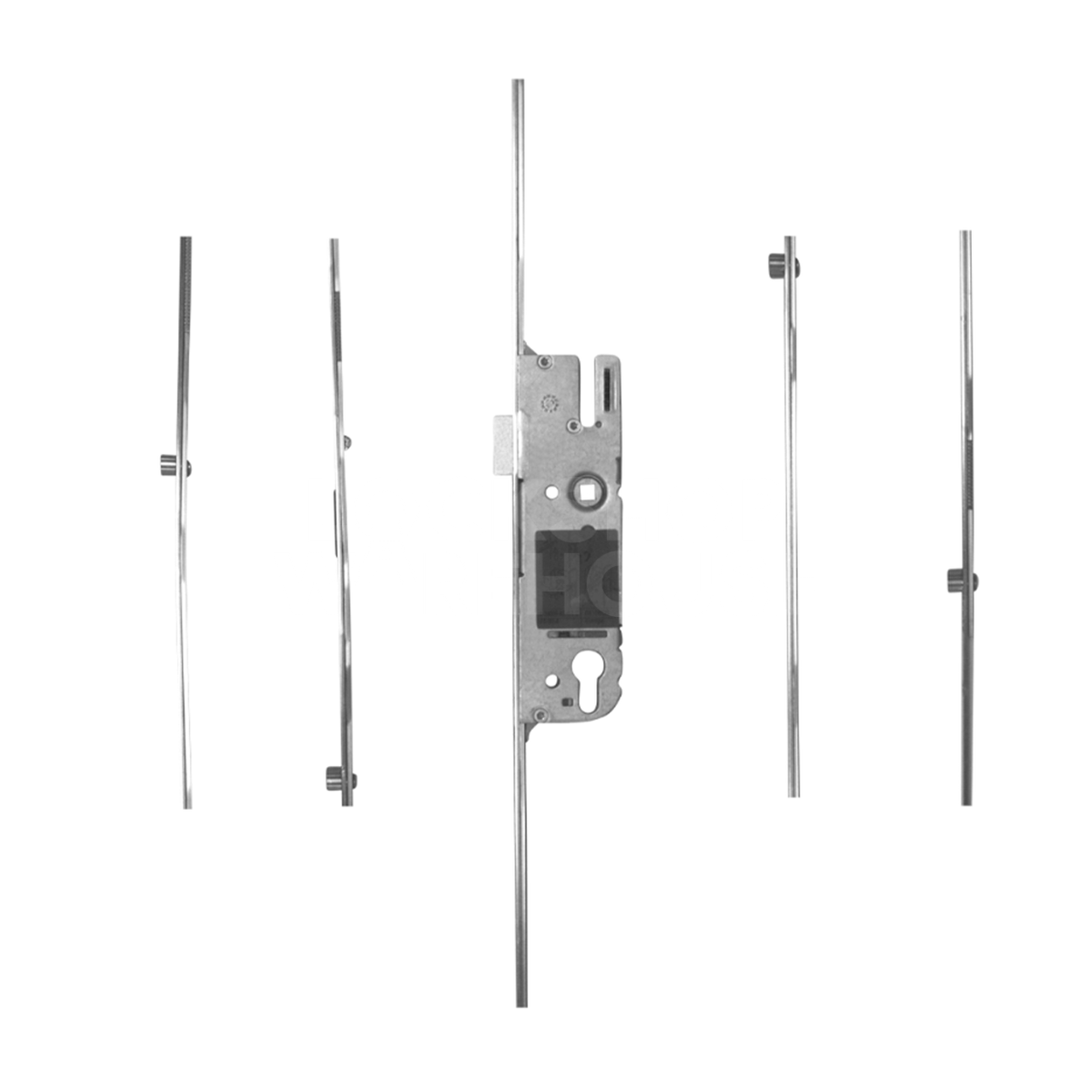

GU - 4 Rollers: UPVC Multi-Point Locking Mechanism 45mm Backset

£56.39

(£46.99 ex VAT)

This lever operated latch & deadbolt multipoint lock from GU features a Euro profile lock case, a single spindle, a 16mm wide faceplate and 4 additional roller locking points. It is single spindle and will accept shootbolt attachments.

Features

  • Will accept shootbolt attachments
  • 16mm Faceplate
  • Single Spindle
  • Latch & deadbolt
  • Euro profile lock case
Spindle Single
Operation A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Notes Will accept shootbolt attachments
Brand GU
Backset 45mm
Case Height 195mm
Centres 92mm
Centre Case Latch & Deadbolt
Case Width 60mm
Weight 2Kg

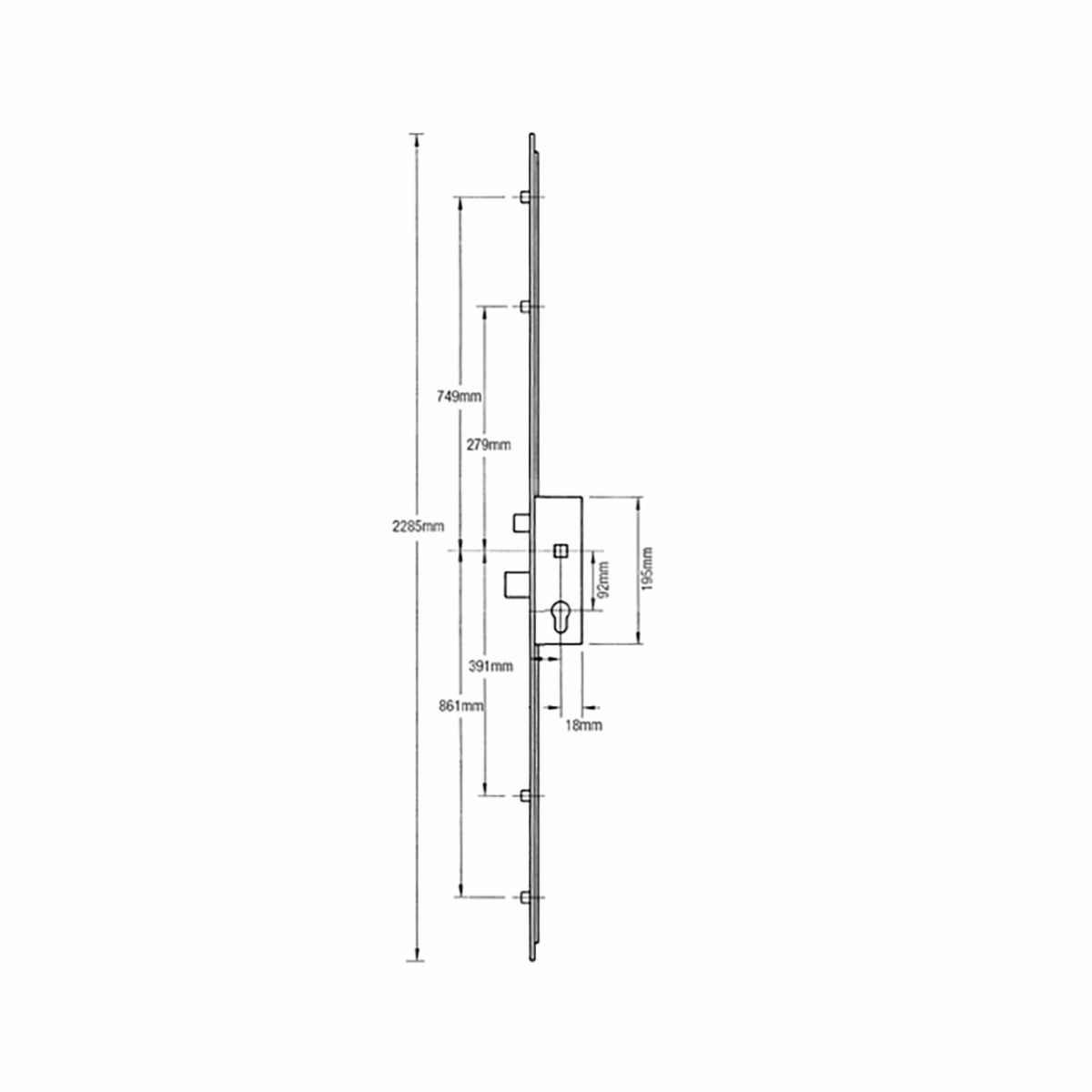

Locking Point Distance D 875mm
Locking Point Distance C 730mm
Locking Point Distance B 405mm
Locking Point Distance A 260mm
Locking Point Roller 4
Faceplate Width 16mm
Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
6/10 Security Rating

Brand

GU

SKU

L15618

Box Contents

4 x Rollers

Locking Mechanism
