skip to Ferco Tripact Lever Operated Latch and Deadbolt 20mm Faceplate -2 Small Hook

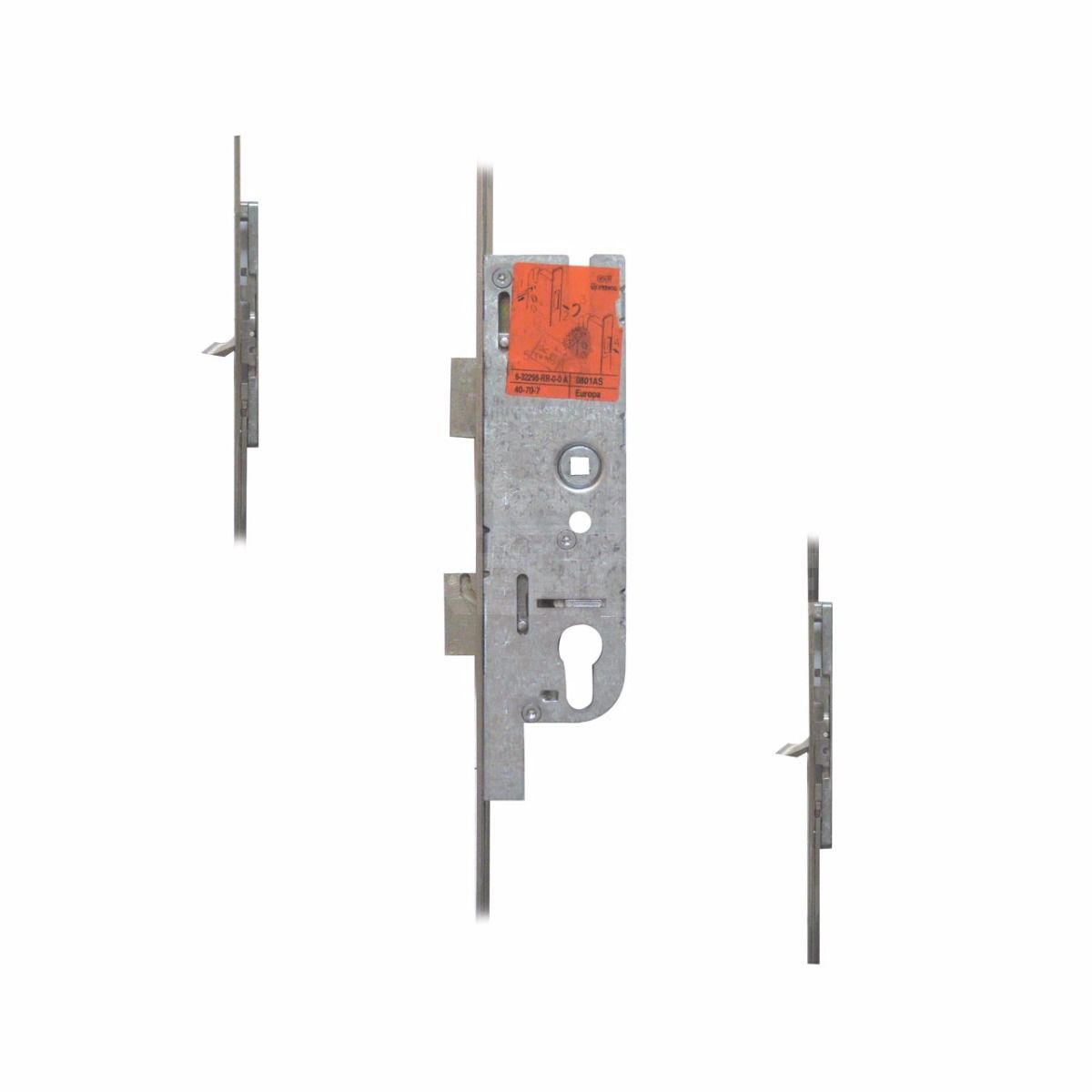

Gallery Image: Ferco Tripact Lever Operated Latch and Deadbolt 20mm Faceplate -2 Small Hook

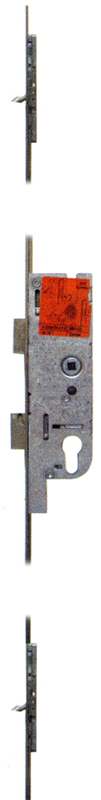

Ferco Tripact Lever Operated Latch and Deadbolt 20mm Faceplate -2 Small Hook

£58.80

(£49.00 ex VAT)

A latch and deadbolt single spindle multipoint lock with 2 small hooks and 70mm centres.

  • 20mm Faceplate
  • 7mm Single Spindle
  • Latch & deadbolt
  • Euro profile lock case
  • A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
Spindle 7mm Single
Brand Ferco
Backset 40/50mm
Case Height 215mm
Centres 70mm
Centre Case Latch & Deadbolt
Case Width 58/68mm
Weight 1.735/1.818Kg
Locking Point Distance B 900mm
Locking Point Distance A 900mm
Locking Point Hooks 2
Faceplate Width 20mm

Backset

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
8/10 Security Rating

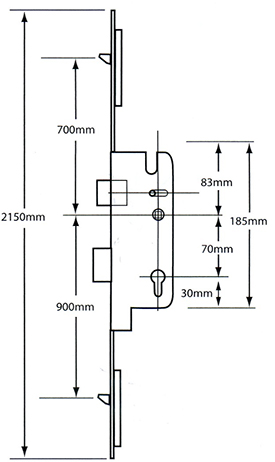

Dimensions

Toggle Icon

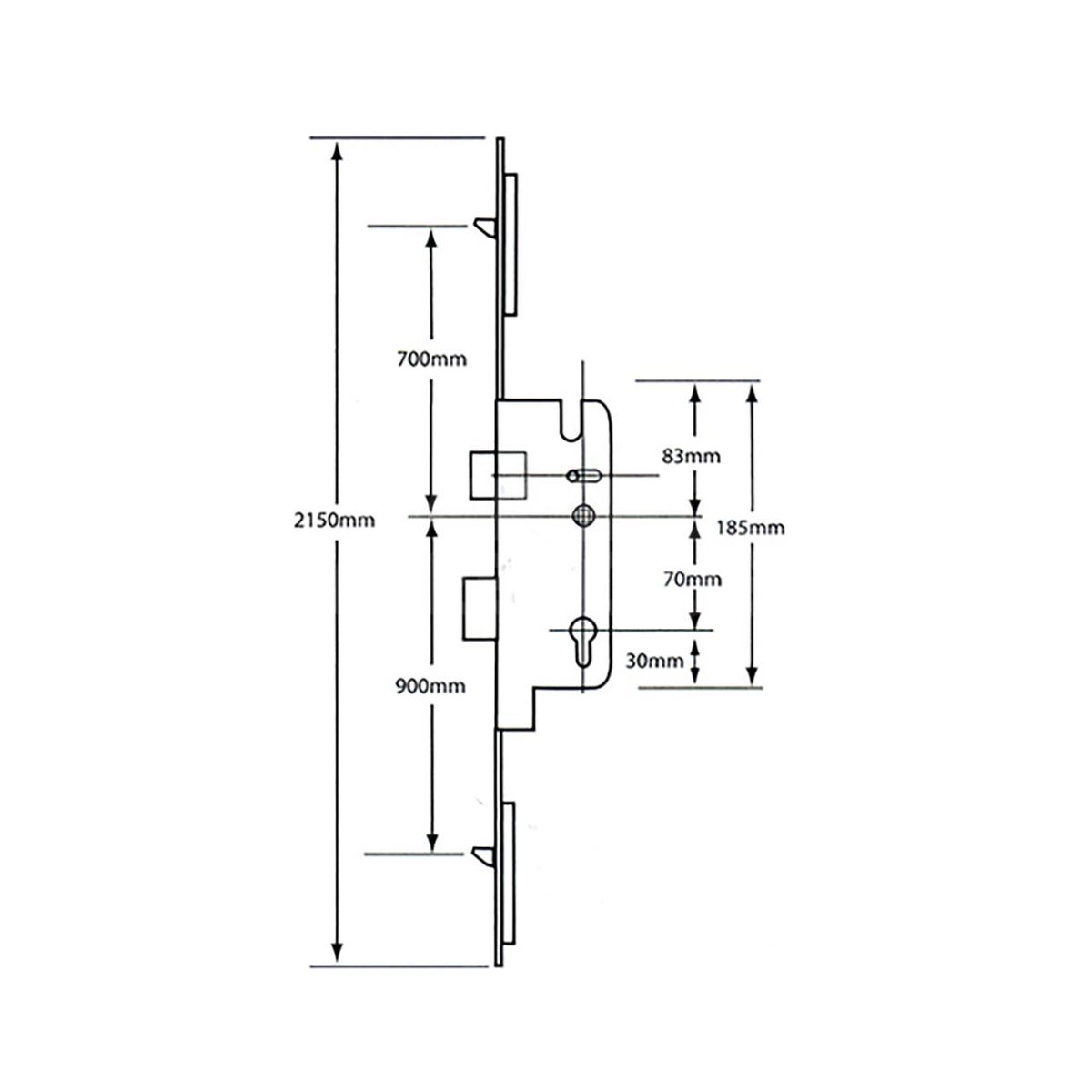

Dimensions Image: Ferco Tripact Lever Operated Latch and Deadbolt 20mm Faceplate -2 Small Hook
Part Min (mm) Max (mm)
centres 70 -
Case Height 215 -

Technical Specifications

Toggle Icon

Brand

Ferco

SKU

L15347

Box Contents

Euro Profile Lock Case

Latch & Deadbolt

Faceplate
