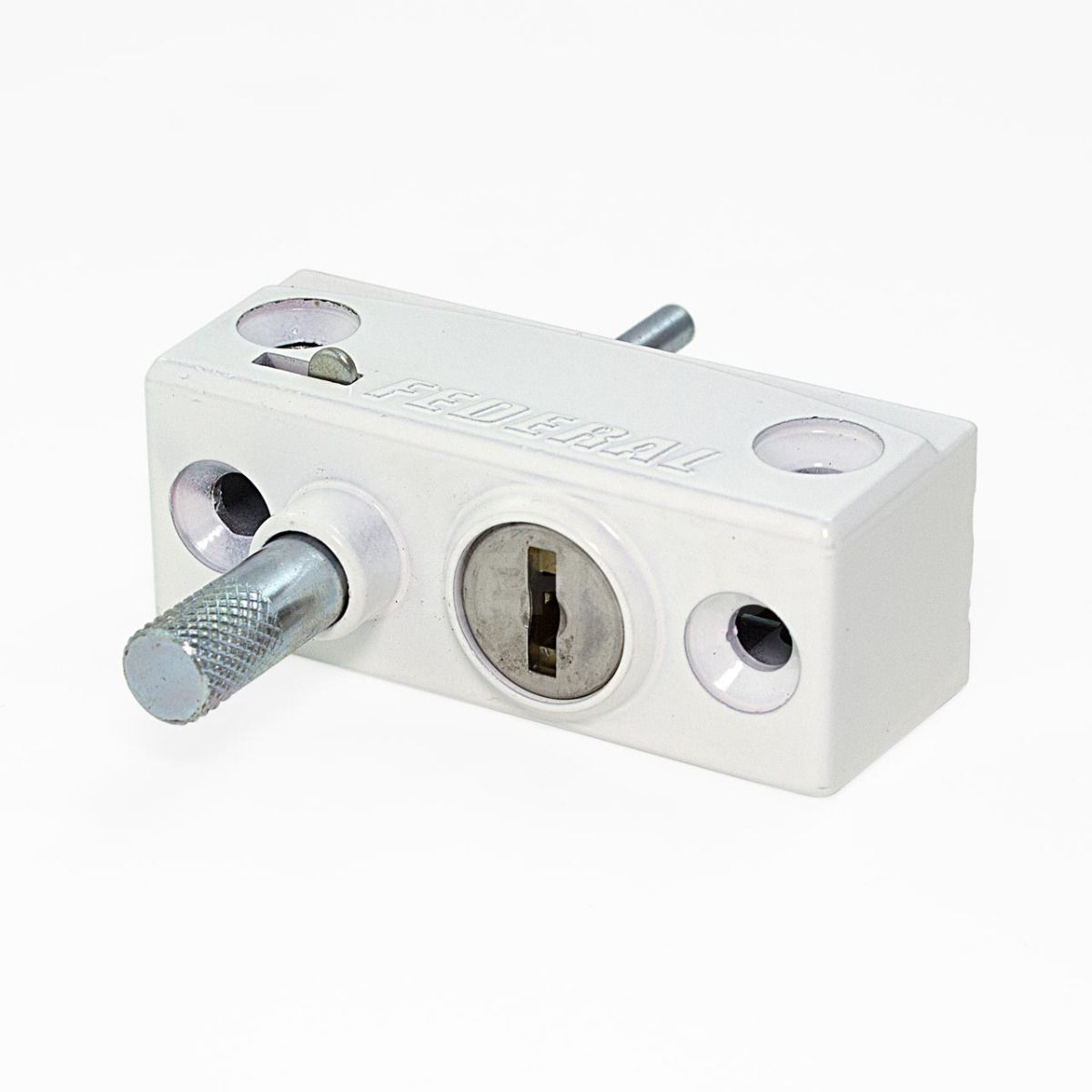

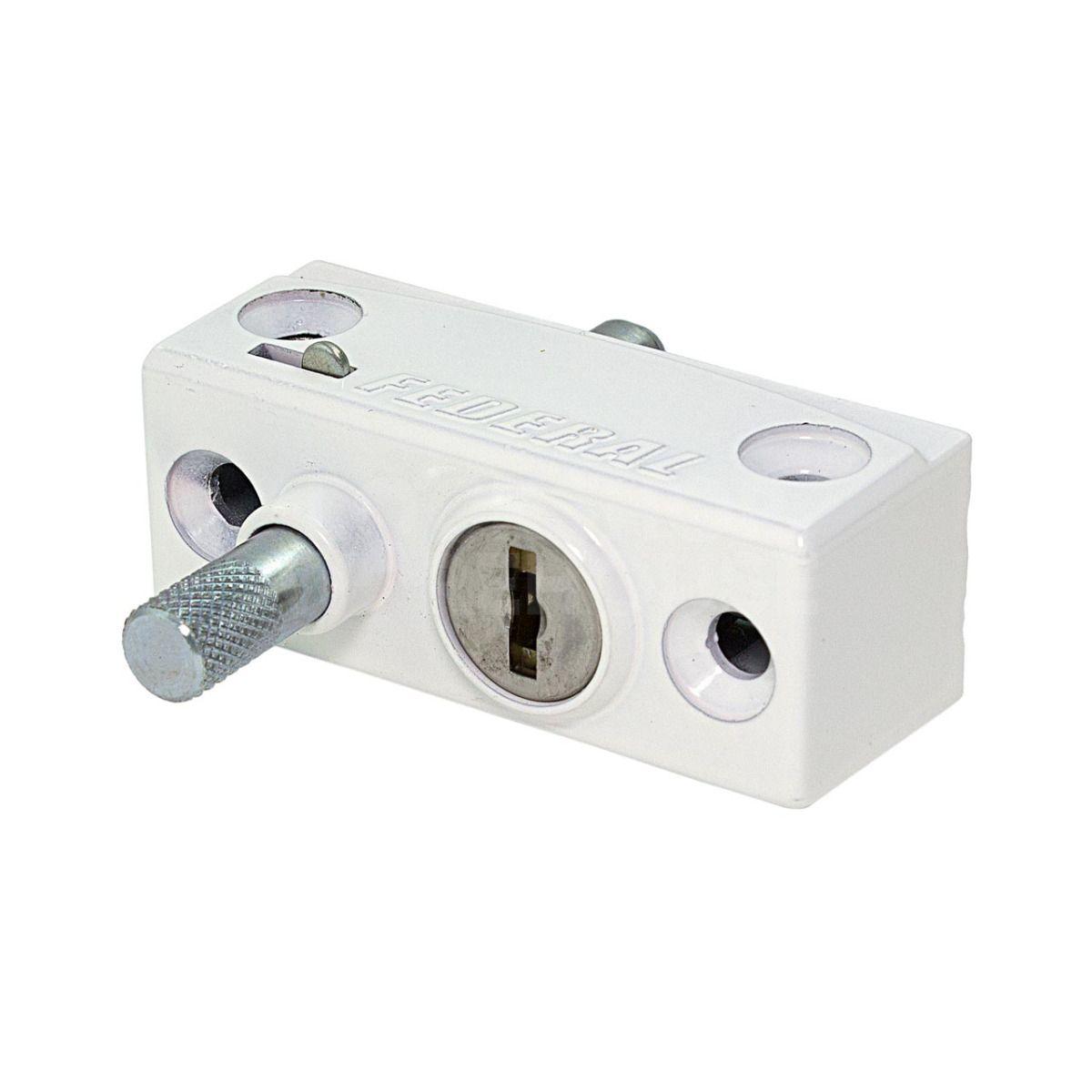

Suitable for sliding or hinged windows, timber,aluminium or UPVC Frames. Key locking (2 keys supplied).

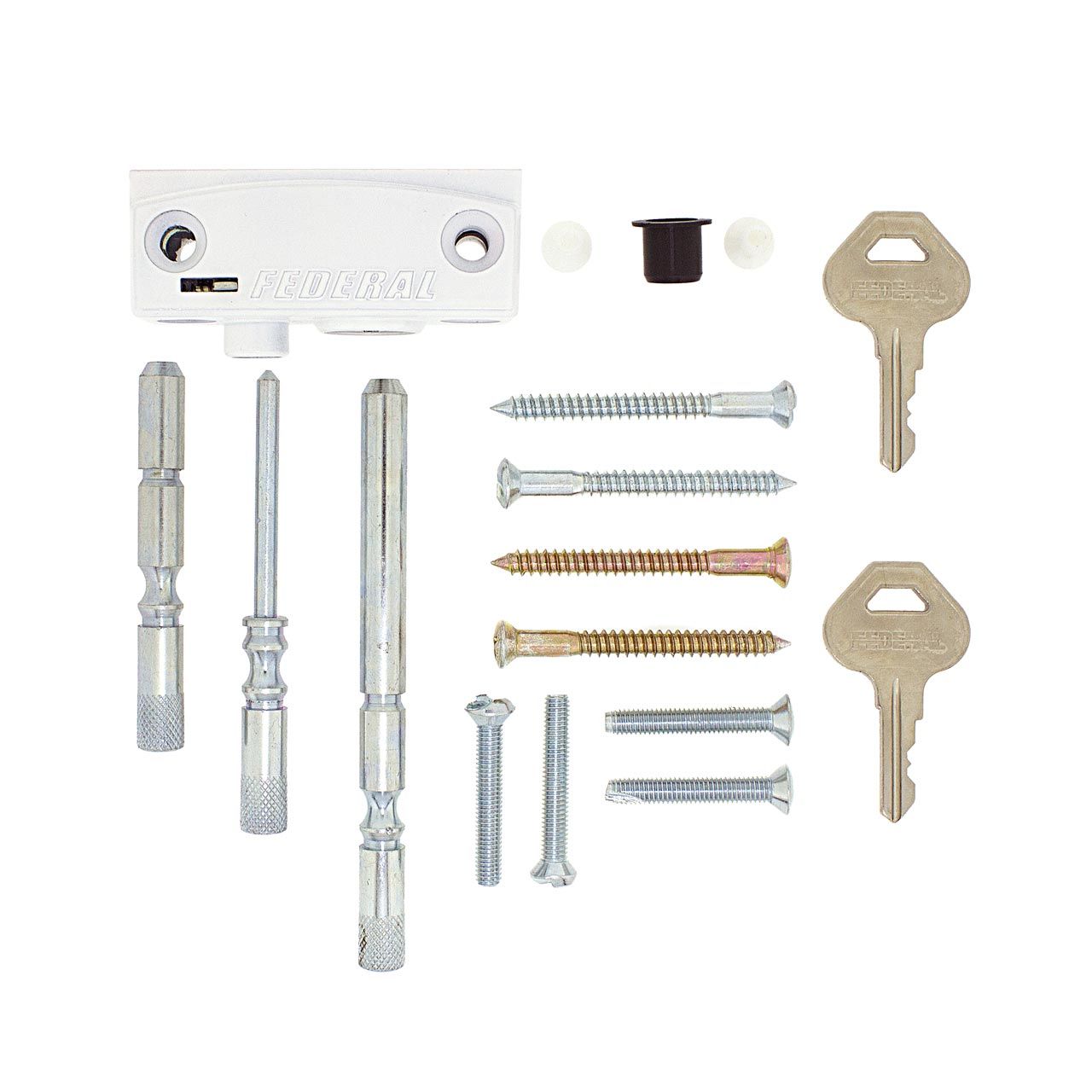

Lock supplied with a set of 3 different bolts.

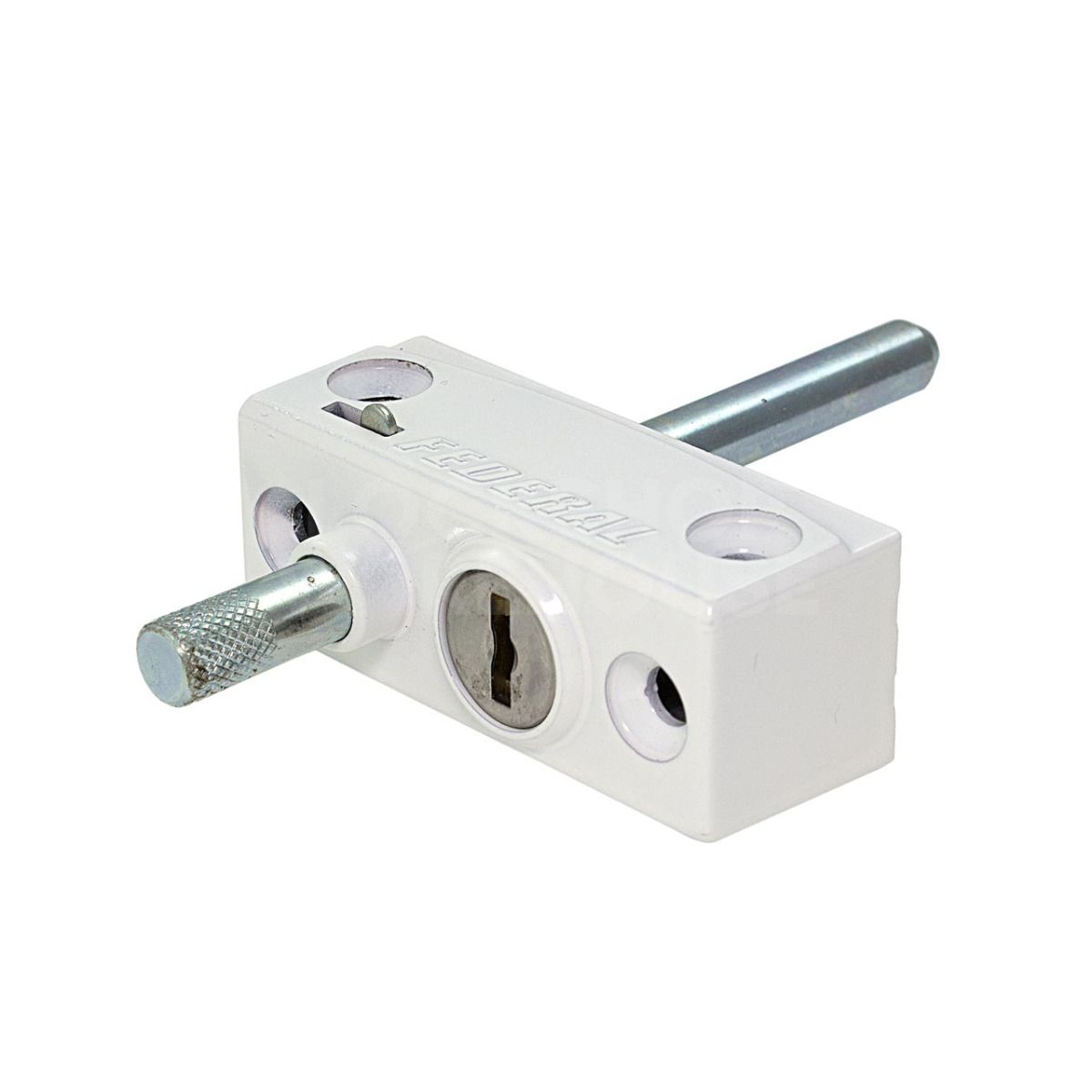

Bolt 1 (as picture) 8mm Dia. x 61mm long. (61mm protrusion from body in locked position)
Bolt 2 - 8mm Dia. x 26mm Long. (26mm protrusion from body in locked position)
Bolt 3 - 4mm Dia. x 38mm Long. (38mm protrusion from body in locked position)
Supplied complete with screws for wood and self tapping screws for Aluminum. Plastic end caps included. The small lever in the picture can be raised to allow the bolt to be completly removed.
Can be supplied in Keyed Alike Groups.
Lock body dimensions:- 64mm x 25mm x 24mm
Keys Supplied:
per lock
total
(unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups.
If Required: Let us know the details in the "Specific Key Requirements" field above.
Each group of locks will then receive keys.
