ERA's comprehensive range of MPLs are suitable for PVCu, composite, steel faced and timber entrance doors. The high security MPL locking system is designed to meet the requirements of Secured by Design (Police approved specification) and has passed the latest PAS23 and PAS24 testing criteria.
- 20mm Radius
- Split Spindle for lever/pad applications
- Bi-directional throw of locking feature - enhanced anti-jemmy feature
- Snib Facility as standard on all locks
- Central brass deadbolt throws 22mm to prevent unauthorised entry
- Non-handed lock mechanism with reversible sash bolt
| Spindle | Split |
| Operation | A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock. |
| Brand | ERA |
| Backset | 45mm |
| Case Height | 220mm |
| Centres | 92mm |
| Centre Case | Latch & Deadbolt |
| Case Width | 60mm |
| Weight | 2.3Kg |

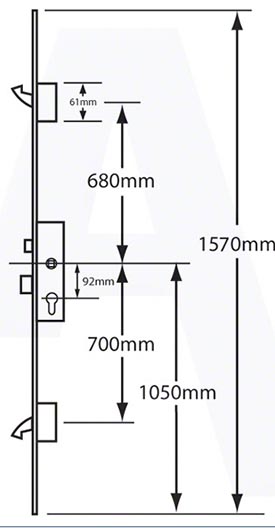

| Locking Point Distance B | 700mm |
| Locking Point Distance A | 685mm |
| Locking Point Hooks | 2 |
| Faceplate Width | 20mm Radius |
Please note these Multipoint locks do not come with any strike plates or fixing screws. The strike plates can be ordered but please contact us if required.
Keys Supplied:
0
per lock
total
(unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups.
If Required: Let us know the details in the "Specific Key Requirements" field above.
Each group of locks will then receive 0 keys.
