skip to Avocet 2 Hooks and 4 Rollers: UPVC Multi-Point Locking Mechanism
Gallery Image: Avocet 2 Hooks and 4 Rollers: UPVC Multi-Point Locking Mechanism Gallery Image: Avocet 2 Hooks and 4 Rollers: UPVC Multi-Point Locking Mechanism

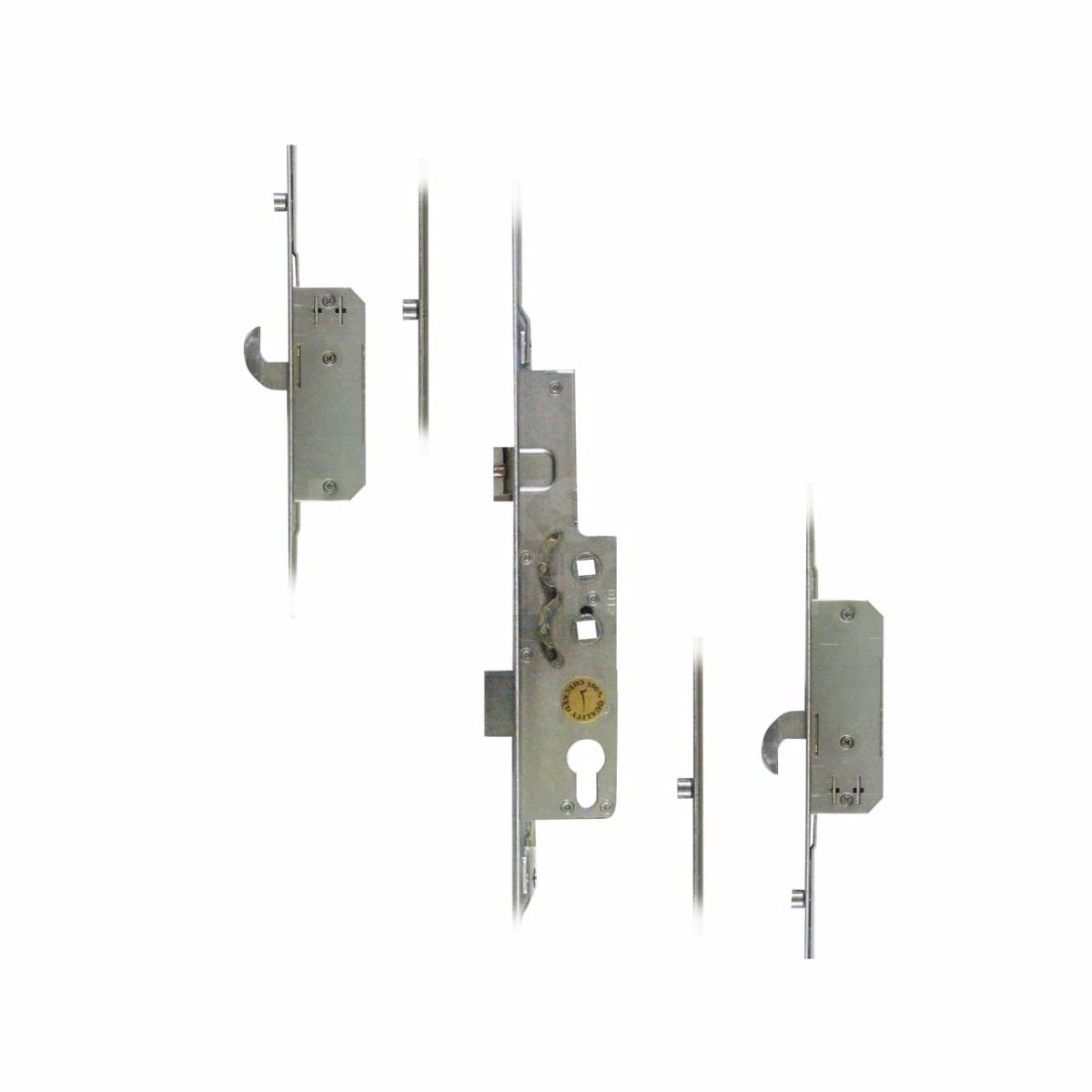

Avocet 2 Hooks and 4 Rollers: UPVC Multi-Point Locking Mechanism

£59.99

(£49.99 ex VAT)

Features

  • 16mm Faceplate
  • Twin spindle
  • Latch & deadbolt
  • Euro profile lock case
  • 35mm (L20458) is complete with a sash lifter, please order L22729 (LH) or L22730 (RH) sash lifters to add make L1537 into L20458
  • A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock
Spindle Twin
Operation A - Lift lever to engage locking mechanisms and then one full turn of the cylinder to lock. One full turn of the key then push down on the lever to unlock.
Brand Avocet
Backset 35mm
Case Height 220mm
Centres 92mm & 62mm
Centre Case Latch & Deadbolt
Case Width 50mm
Weight 2.644Kg

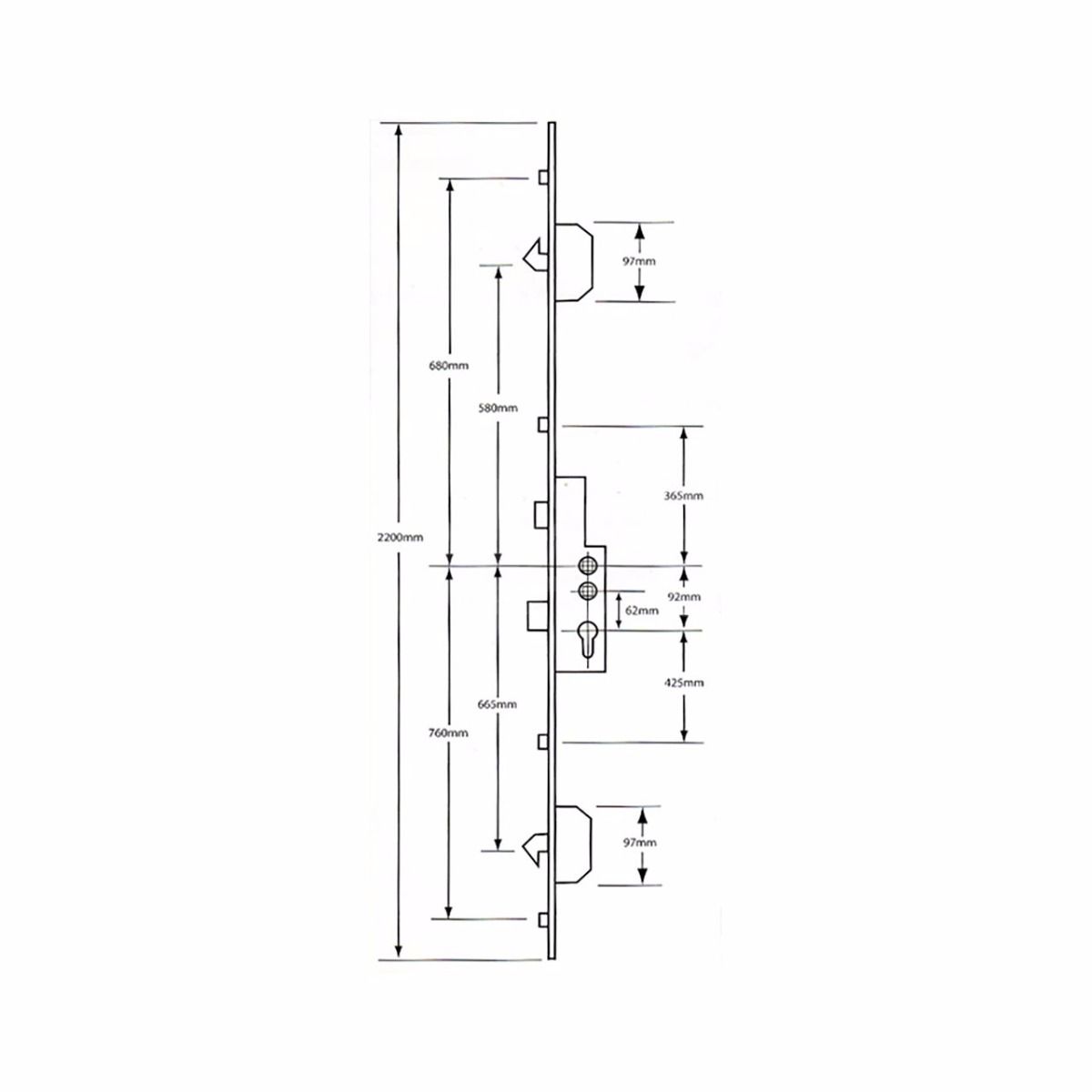

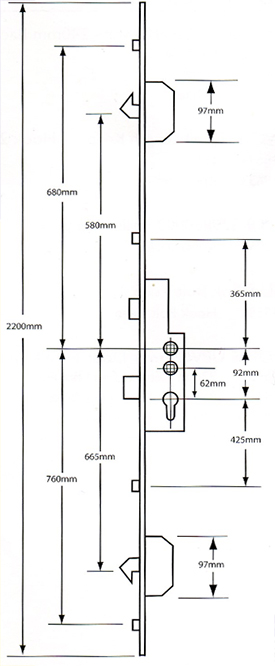

Locking Point Distance D 660mm
Locking Point Distance C 580mm
Locking Point Distance B 420mm
Locking Point Distance A 365mm
Locking Point Roller 4
Locking Point Hooks 2
Faceplate Width 16mm
Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
7/10 Security Rating

Brand

Avocet

SKU

L15357

Box Contents

Faceplate

Euro Profile Lock Case

2 x Hooks

4 x Rollers

Latch & Deadbolt
