Gallery Image: Asec Five Lever Deadlock (BS3621:2007)

Gallery Image: Asec Five Lever Deadlock (BS3621:2007)

Gallery Image: Asec Five Lever Deadlock (BS3621:2007)

Gallery Image: Asec Five Lever Deadlock (BS3621:2007)

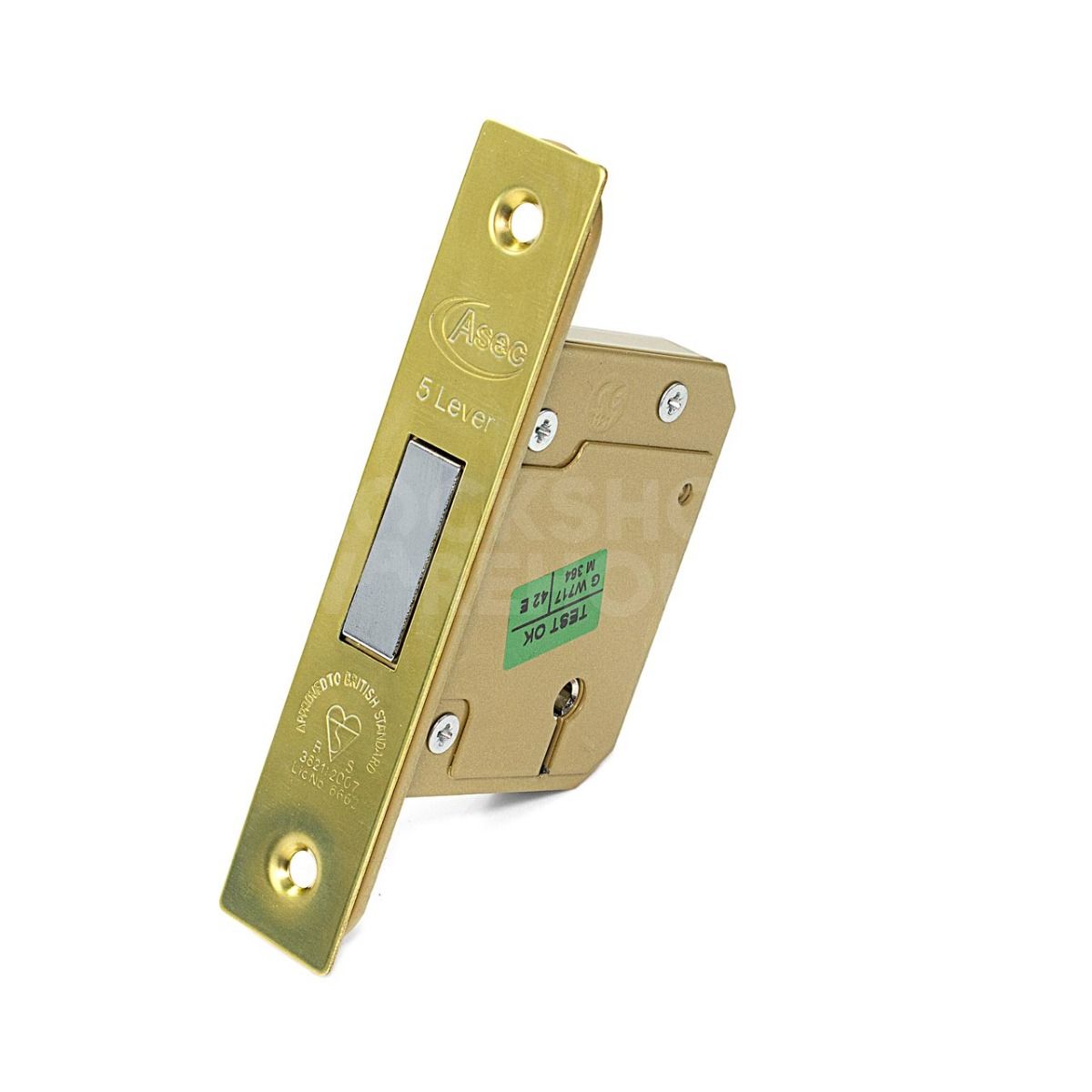

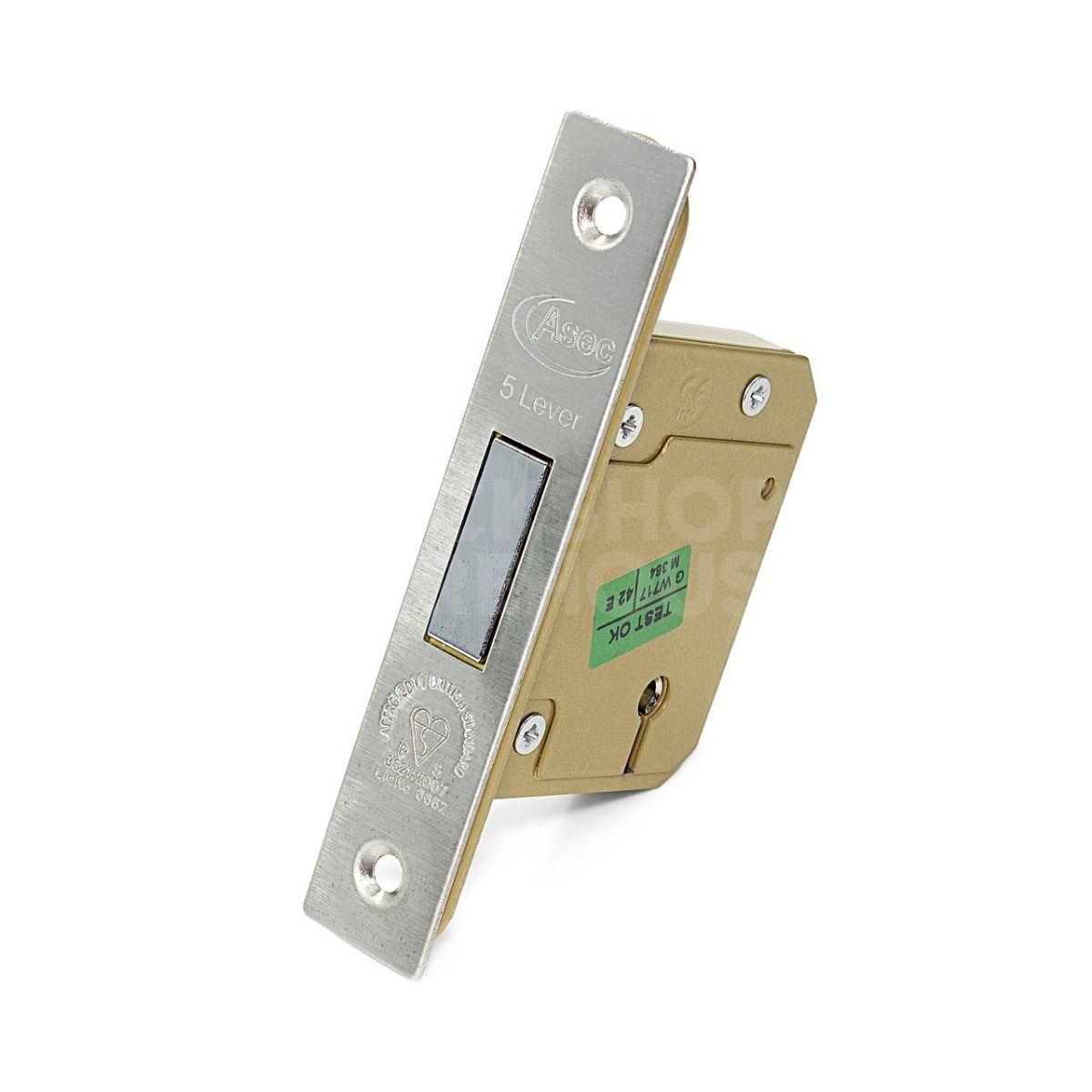

Asec Five Lever Deadlock (BS3621:2007)

£22.79

(£18.99 ex VAT)

This Asec deadlock is suitable for use on external doors as it's BS3621 : 2007 compliant, insurance approved and police approved. Designed with a steel case with an anti-drill plate on both the cap and the case.

The lock comes with a 10 year guarantee and escutcheons are included.

Mechanism : 5 Lever
Security Level: British Standard - BS3621:2007
Case Size: 64mm or 76mm
Case Finish: Gold (hmmm, in colour anyway)
Foreend Finish : Polished Brass or Stainless Steel
Keys Supplied : 2
Differs: 1000

Case Size

Finish

Key Configuration

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Recommended

9/10 Security Rating

british-standard

British Standard - BS3621

key-pinned

Key Profile: Standard

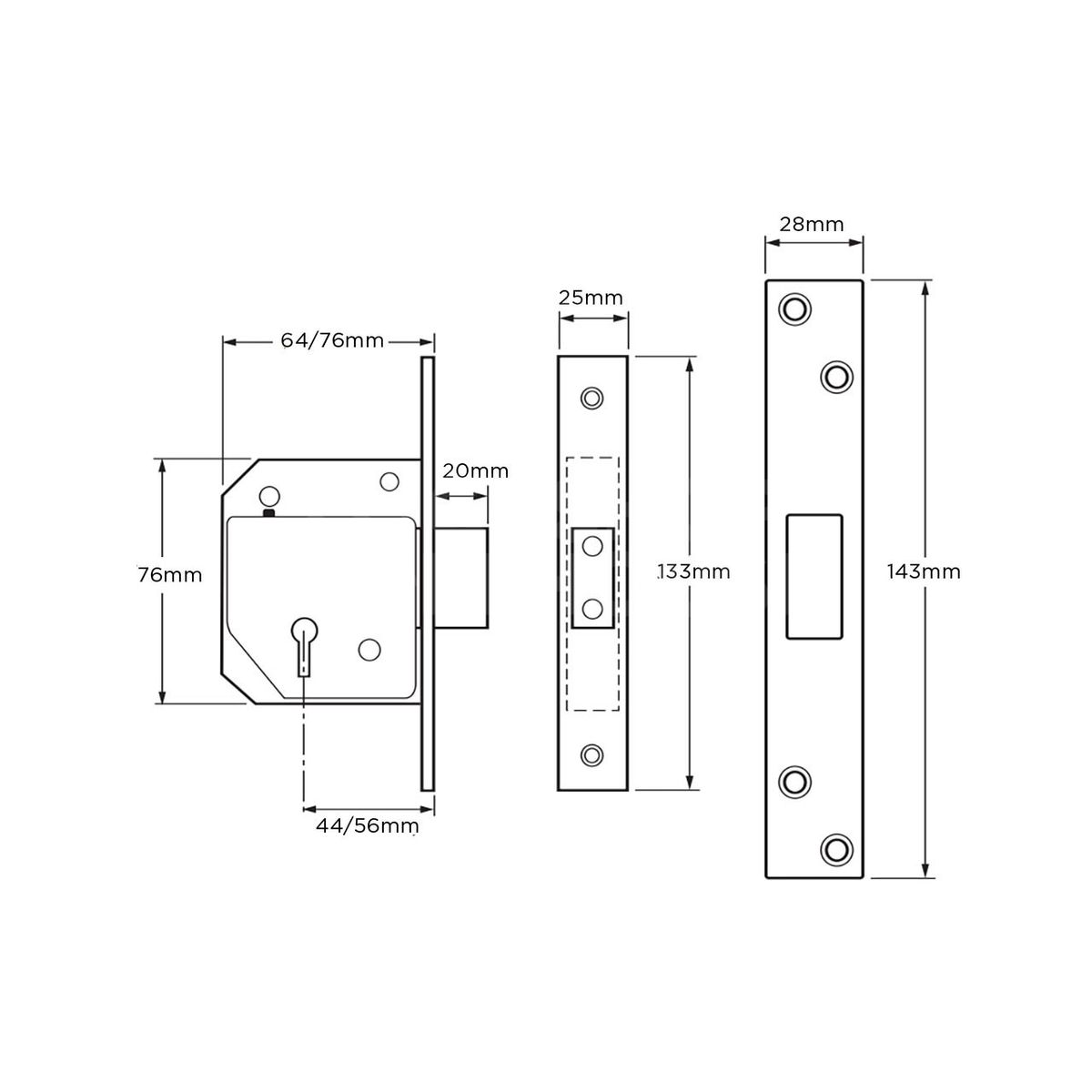

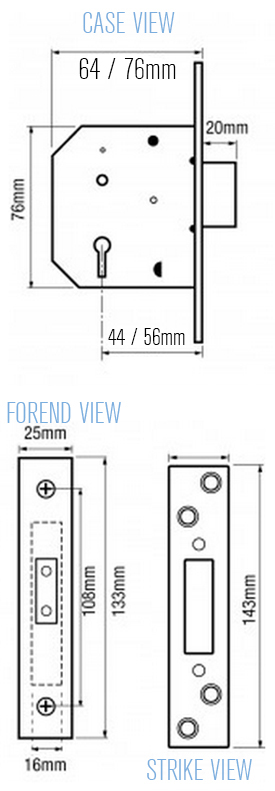

Dimensions

Dimensions Image: Asec Five Lever Deadlock (BS3621:2007)

Part	Min (mm)	Max (mm)
Backset	44	57
Bolt Length	20	-
Case Width	64	76
Case Height	76	-
Forend Width	25	-
Forend Length	134	-
Strike Plate Width	29	-
Strike Plate Length	143	-

Technical Specifications

Dimensions Image: Asec Five Lever Deadlock (BS3621:2007)

Brand

Asec

SKU

ASEC5LD

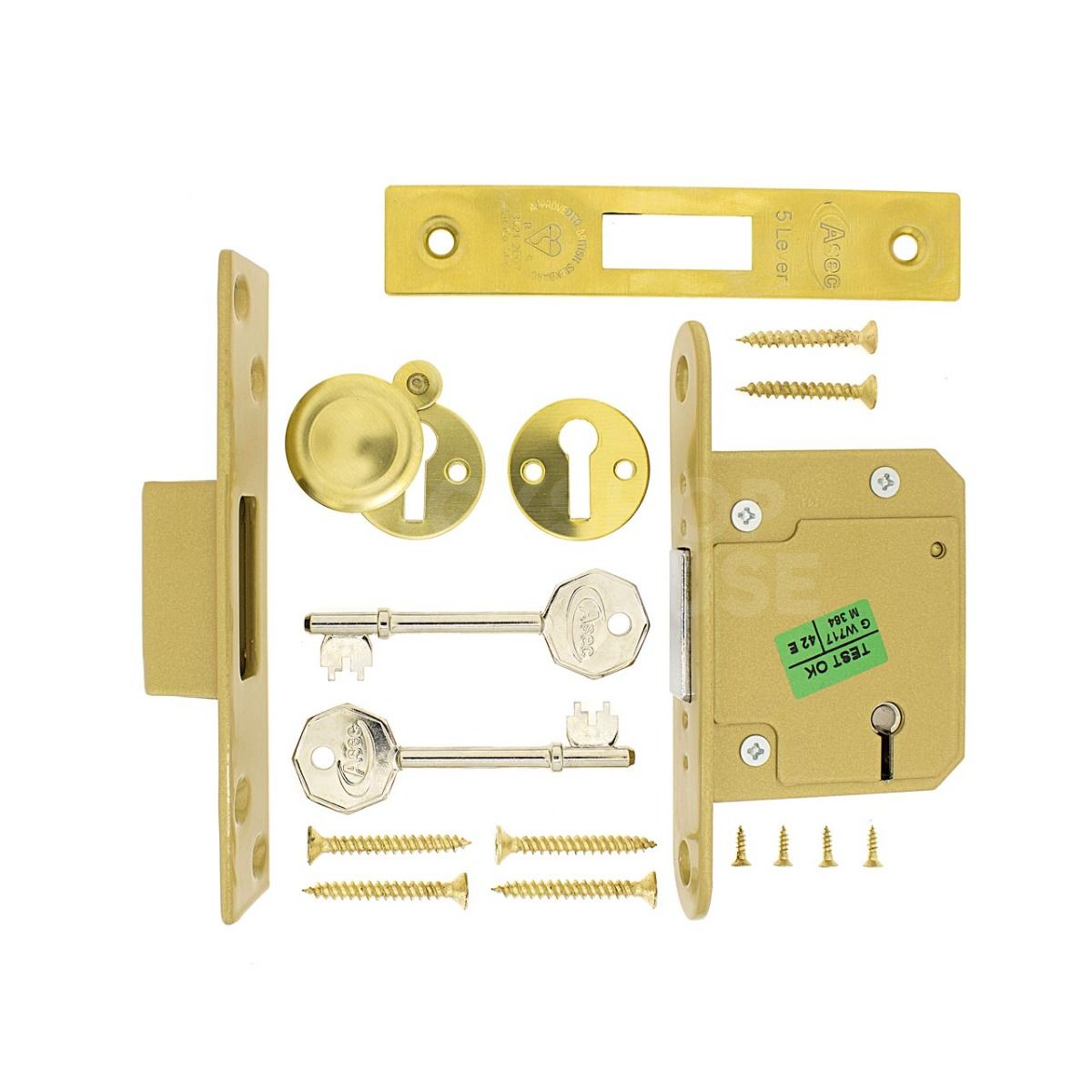

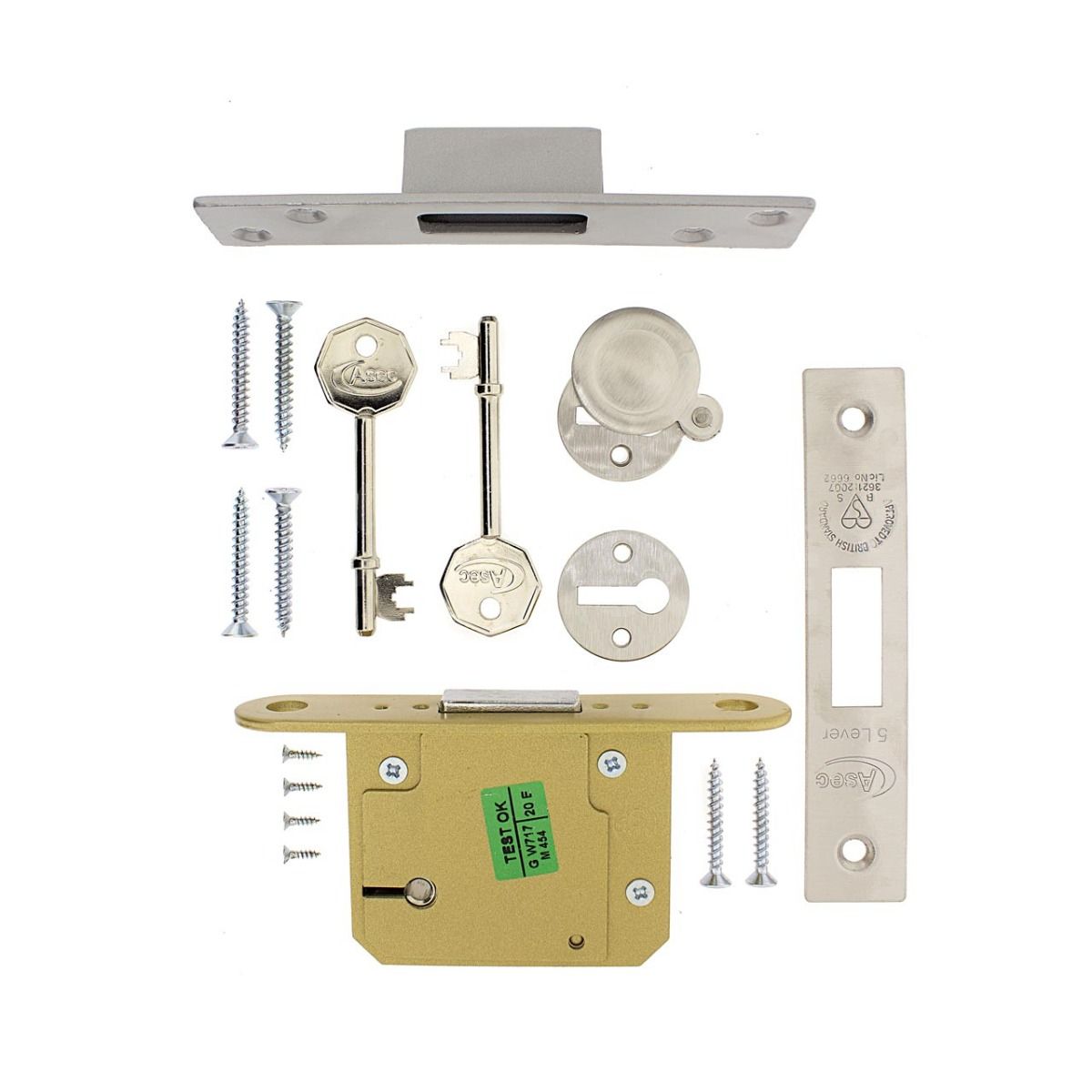

Box Contents

2 keys

strike plate

fixing screws

instructions

mortice lock

key escutcheons

Certifications

british-standard

British Standard - BS3621

Key Profile

Key Profile: Standard

Reviews

Asec 5 Lever Lock Extra key

£3.60

(£3.00 ex VAT)

We use copy key blanks not genuine key blanks to reduce the cost of the key cutting. All key blanks that we use are the top quality keys from the biggest key blank manufacturers. !!<

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

>

!!

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Reviews

Gallery Image: Extra long key for Asec locks (extra 30mm)

Extra long key for Asec locks (extra 30mm)

£4.80

(£4.00 ex VAT)

Extra long key for Asec 5 lever locks with 30mm added length when compared with the standard length keys.

All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Technical Specifications

Brand

Asec

SKU

ASEC1096L

Box Contents

1 key

Reviews

Rebate for ASEC DeadLocks

£15.60

(£13.00 ex VAT)

This rebate was designed to suit Asec 5 lever locks and is available in a choice of sizes & finishes. !!<

Rebate sets are only needed for double rebated doors, these are not the plates you require if you have a single door these are included with every mortice lock.

>

!!

Finish

Size

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Reviews

FIRESTOP Intumescent Kit To Suit Asec 5 Lever BS Deadlock

£8.39

(£6.99 ex VAT)

This FIRESTOP Intumescent Kit is designed to suit the Asec 5 Lever BS Deadlock. Manufactured from interdens, it can be cut down to size and features zero pressure foam expansion. It has been tested to BS476 Part 22: 1987 & BS EN 1634-1: 2014 and is both 30 and 60 minute rated. The semi rigid interdens with a self-adhesive backing ensure easy application. Features Easy application 30 & 60 minute fire rated Tested to BS476 Part 22: 1987 & BS EN 1634-1: 2014 Zero pressure foam expansion Manufactured from interdens Intumescent kit to suit the Asec 5 Lever BS Deadlock

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Reviews

Gallery Image: Suitable Size Chisels to fit Mortice Locks

Gallery Image: Suitable Size Chisels to fit Mortice Locks

Gallery Image: Suitable Size Chisels to fit Mortice Locks

Suitable Size Chisels to fit Mortice Locks

£17.99

(£14.99 ex VAT)

This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Kit includes:

1 x Faithful 19mm Chisel

1 x Faithful 25mm Chisel

The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow.

Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners.

All the chisels in this range are supplied with blade guards.

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Technical Specifications

SKU

MortChis

Box Contents

19mm Chisel

25mm Chisel

Blade Guards

Reviews

Gallery Image: Complete Set of 4 Chisels by Blue Spot

Complete Set of 4 Chisels by Blue Spot

£16.79

(£13.99 ex VAT)

This is a very basic set of Chisel made by Blue Spot. They are a very cheap entry level chisel but a good buy if you have not got a set.

BlueSpot Tools 4 Piece Wood Chisel Set with precision ground blades. The chisels are made from hardened steel for extra strength and have grooved plastic handles for grip.

Set Contains:

1 x 6mm BlueSpot Chisel

1 x 12mm BlueSpot Chisel

1 x 19mm BlueSpot Chisel

1 x 25mm BlueSpot Chisel

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Technical Specifications

Dimensions Image: Complete Set of 4 Chisels by Blue Spot

SKU

BLChisSet

Box Contents

1 x 6mm Chisel

1 x 12mm Chisel

1 x 19mm Chisel

1 x 25mm Chisel

Reviews

Gallery Image: Suitable Size Drill Bits to fit Mortice Locks

Suitable Size Drill Bits to fit Mortice Locks

£11.99

(£9.99 ex VAT)

This Mortice Drill Bit Kit will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door

Qty:

Keys Supplied: per lock total (unless ordering multiple groups)

Additional Keys are available below

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Technical Specifications

SKU

MortTool

Box Contents

1 x Black and Decker 18mm Flat wood bit (for main mortice hole)

1 x Black and Decker 10mm Flat wood bit (for Key Holes)

2 x Black and Decker 2.5mm drill (for pilot holes)

Reviews
