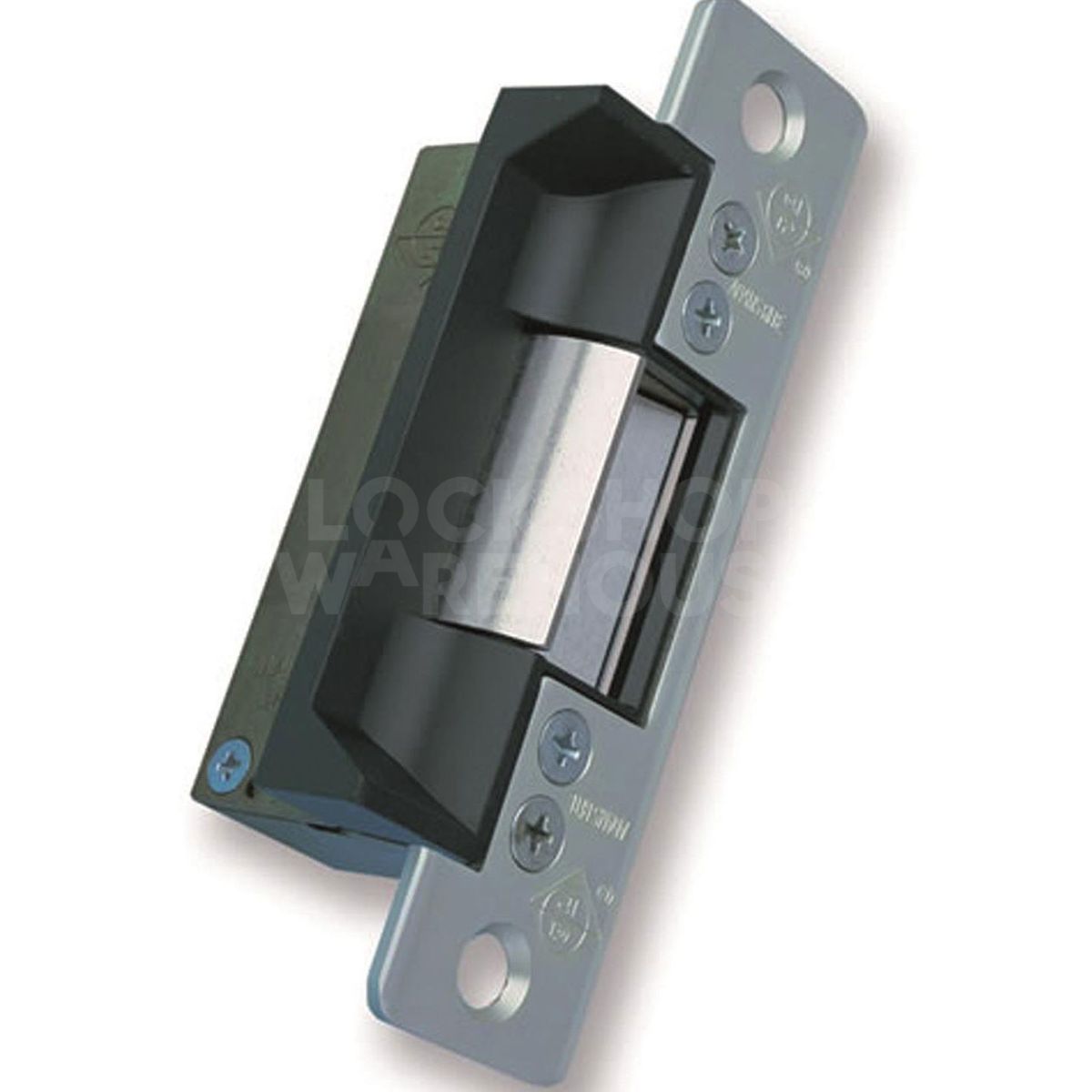

The ADAMS RITE 7100 Mortice Release is suitable for use on aluminium doors and enables remote access control of doors equipped with the Adams Rite 4700 series deadlatch. The monitored latch is easily reversible to suit both left handed and right handed applications and has a flat faceplate for mounting in the frame of a single action single leaf door.
The DC releases can be changed to fail safe or fail secure and have a 907kg holding force. The strike jaw is unlocked by electrical actuation which releases the latchbolt so that the door can be opened without operating the latch itself.
Features
- Medium duty
- Short faceplate to suit aluminium frame
- DC releases are reversible fail locked or fail unlocked
- Continuously rated
- Single monitored C/NO/NC contacts - latch position
- Flat faceplate
Operation | Fail Unlocked or Fail Locked |
Notes | Flat Faceplate To Suit Aluminium Doors |
Packaging | Boxed |
Pack Quantity | 1 |
Adjustable Jaw | No |
Weather Resistant | No |
Brand | Adams Rite |
Body Height | 85mm |
Body Depth | 25mm |
Current Consumption | 0.332A |
Weight | 480g/490g |
Monitored | Yes |
Guarantee | 3 Year |
Fitting | Mortice |
Finish | Satin Anodised Aluminium |
Faceplate Width | 32mm |
Faceplate Height | 123mm |
Jaw Width | 15mm |
Jaw Height | 35mm |
Jaw Depth | 12mm |
Input Voltage | 12V DC |
Holding Force | 907Kg / 2000Lbs |
