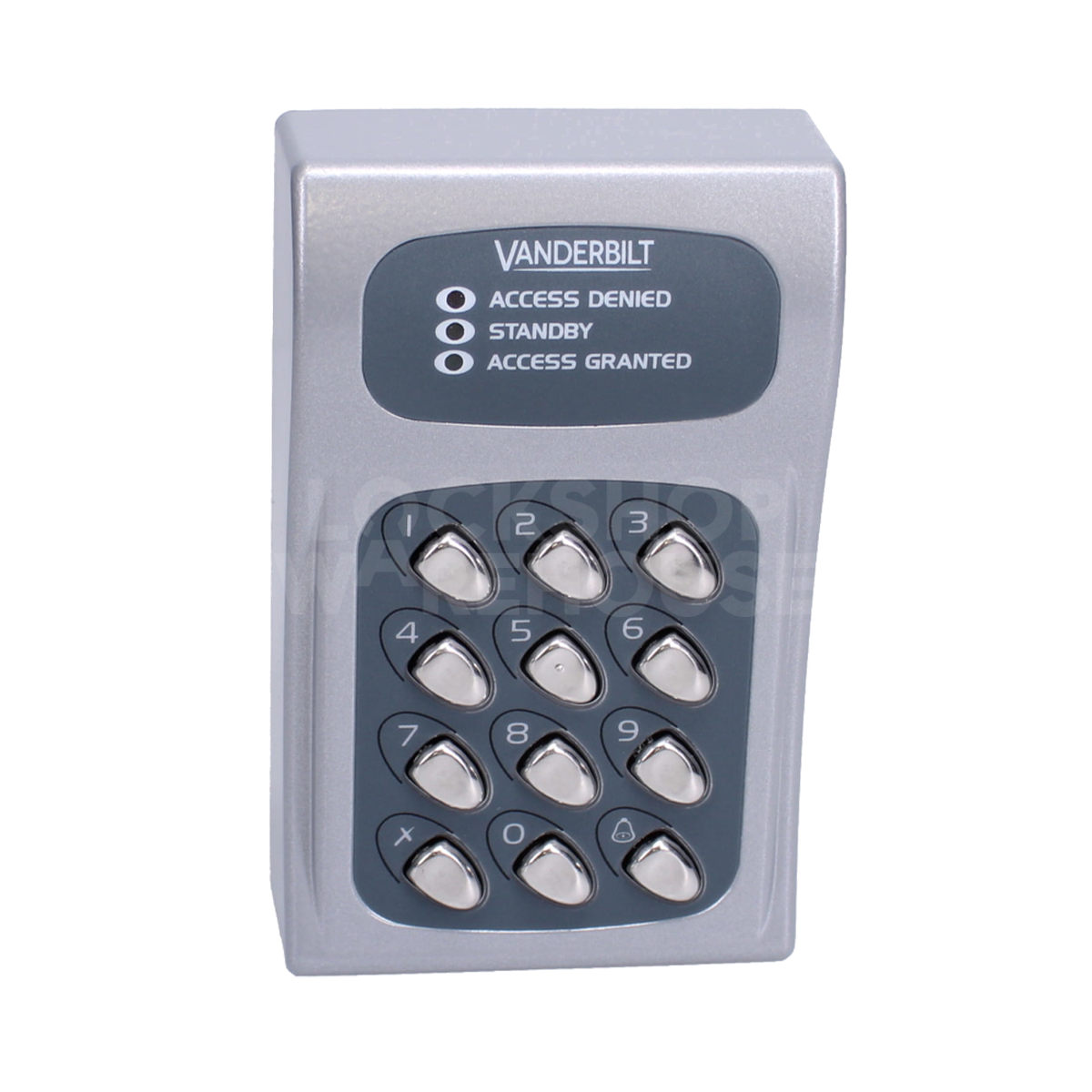

The ACT ACT10 is a durable digital keypad, manufactured from vandal resistant die cast zinc. The stainless steel keys are backlit and are programmed via the keypad, with a code length of 4-6 digits. It is a multipurpose keypad, suitable for both indoor or outdoor use, and facilitates access control, door monitoring and interlock applications.
- Non-volatile memory
- Lock open time 1- 60 seconds or toggle mode
- Interlock facility & 2 additional outputs
- Dual code facility & Duress code option
- Fire/intruder alarm interface
- Backlit buttons, programming via the keypad
| Rating | 5 Amp Max @ 12/24V AC/DC |
| Programming | Via Keypad |
| Pack Quantity | 1 |
| Packaging | Boxed |
| Visual Indication | Yes |
| Audible Indication | Yes |
| Width | 87mm |
| Weather Resistant | Yes |
| Codes | 10 |
| Brand | ACT |
| Depth | 33mm |
| Current Consumption | 0.12A |
| Controller Required | No |
| Connections | Terminals |
| Code Length | 4 To 6 Digits |
| Sales Ranking | 27340 |
| Weight | 700g |
| Door Open Time | 1 To 60 Seconds Or Toggle Mode |
| Finish | Dull Metal Grey |
| IP Rating | IP54 (External) |
| Input Voltage | 12/24V AC/DC |
| Illumination | Yes |
